AFAM Steel Rear Sprocket 47T 428 Silver 14201-47

AFAM Steel Rear Sprocket 47T 428 Silver 14201-47

£22.46 GBP
£22.46 GBP
Sale Sold out
Taxes included.

Product details

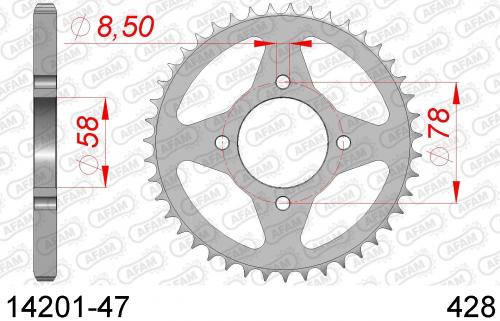

This AFAM steel rear sprocket has 47 teeth and is sized for 428 chain.

  • AFAM part number 14201-47
  • Position Rear
  • Tooth count 47
  • Chain size 428
  • Material Steel
  • Colour Silver
  • Coating Zinc-plated
  • Centre bore 58 mm
  • Bolt pitch circle diameter 78 mm
  • Mounting hole count 4
  • Mounting hole diameter 8.5 mm

REAR STEEL 47T, 428

Manufacturer part number: 14201-47

Vehicle applications

Applications listed by Phoenix Motos. Check the part specifications and application position before ordering.

HYOSUNG
Model Year
GV 125 1 AQUILA 2001
GV 125 2 AQUILA 2002
GV 125 3 AQUILA 2003
GV 125 4 AQUILA 2004
GV 125 5 AQUILA 2005
GV 125 6 AQUILA 2006
GV 125 7 AQUILA 2007
GV 125 8 AQUILA 2008
GV 125 9 AQUILA CLASSIC 2009
GV 125 A AQUILA CLASSIC 2010
GV 125 B AQUILA CLASSIC 2011
GV 125 C AQUILA CLASSIC 2012
GV 125 D AQUILA CLASSIC 2013
GV 125 E AQUILA CLASSIC 2014
GV 125 F AQUILA CLASSIC 2015
GV 125 G AQUILA CLASSIC 2016
GV 125 H AQUILA CLASSIC 2017
SUZUKI
Model Year
GN 125 1 2001
GN 125 C 1982
GN 125 D 1983
GN 125 K 1989
GN 125 L 1990
GN 125 M 1991
GN 125 N 1992
GN 125 P 1993
GN 125 R 1994
GN 125 S 1995
GN 125 T 1996
GN 125 V 1997
GN 125 W 1998
GN 125 X 1999
GN 125 Y 2000
GT 125 1974
GT 125 1975
GT 125 1976
GT 125 1977
GT 125 1978
GT 125 1979
RV 125 1973
RV 125 1974
RV 125 1975
RV 125 1976
