AFAM Steel Rear Sprocket 46T 520 Black 12604-46

AFAM Steel Rear Sprocket 46T 520 Black 12604-46

£35.67 GBP
£35.67 GBP
Sale Sold out
Taxes included.

Product details

This AFAM steel rear sprocket has 46 teeth and is sized for 520 chain.

  • AFAM part number 12604-46
  • Position Rear
  • Tooth count 46
  • Chain size 520
  • Material Steel
  • Colour Black
  • Coating Cataphoretic coating

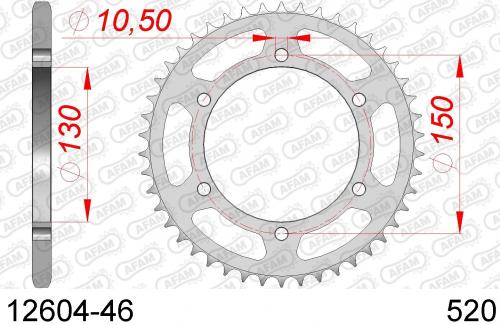

  • Centre bore 130 mm
  • Bolt pitch circle diameter 150 mm
  • Mounting hole count 6
  • Mounting hole diameter 10.5 mm

REAR STEEL 46T, 520

Manufacturer part number: 12604-46

Vehicle applications

Applications listed by Phoenix Motos. Check the part specifications and application position before ordering.

YAMAHA
Model Year
XJ 6 F A DIVERSION ABS 2010
XJ 6 F B DIVERSION ABS 2011
XJ 6 FA B DIVERSION ABS 2011
XJ 6 FA C DIVERSION ABS 2012
XJ 6 FA D DIVERSION ABS 2013
XJ 6 FA E DIVERSION ABS 2014
XJ 6 FA F DIVERSION ABS 2015
XJ 6 N 9 ABS 2009
XJ 6 N A ABS 2010
XJ 6 N B ABS 2011
XJ 6 N C ABS 2012
XJ 6 N D ABS 2013
XJ 6 N E ABS 2014
XJ 6 N F DIVERSION ABS 2015
XJ 6 S 9 DIVERSION ABS 2009
XJ 6 S A DIVERSION ABS 2010
XJ 6 S B DIVERSION ABS 2011
XJ 6 S C DIVERSION ABS 2012
XJ 6 S D DIVERSION ABS 2013
XJ 6 S E DIVERSION ABS 2014
XJ 6 S F DIVERSION ABS 2015
XJ 6 SP D DIVERSION ABS 2013
