AFAM Steel Rear Sprocket 46T 520 Black 12305-46
AFAM Steel Rear Sprocket 46T 520 Black 12305-46
Regular price
£35.67 GBP
Regular price
Sale price
£35.67 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Product details

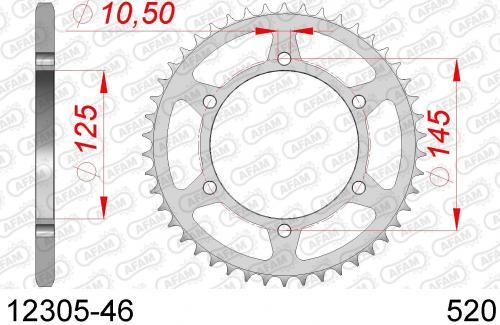

This AFAM steel rear sprocket has 46 teeth and is sized for 520 chain.
- AFAM part number 12305-46
- Position Rear
- Tooth count 46
- Chain size 520
- Material Steel
- Colour Black
- Coating Cataphoretic coating
- Centre bore 125 mm
- Bolt pitch circle diameter 145 mm
- Mounting hole count 6
- Mounting hole diameter 10.5 mm
REAR STEEL 46T, 520
Manufacturer part number: 12305-46
Vehicle applications
Applications listed by Phoenix Motos. Check the part specifications and application position before ordering.
YAMAHA
| Model | Year |
|---|---|
| MT03 660 6 | 2006 |
| MT03 660 7 | 2007 |
| MT03 660 8 | 2008 |
| MT03 660 9 | 2009 |
| MT03 660 A | 2010 |
| MT03 660 B | 2011 |
| MT03 660 C | 2012 |
| MT03 660 D | 2013 |
| XJ 600 N R DIVERSION | 1994 |
| XJ 600 N S DIVERSION | 1995 |
| XJ 600 N T DIVERSION | 1996 |
| XJ 600 N V DIVERSION | 1997 |
| XJ 600 N W DIVERSION | 1998 |
| XJ 600 N X DIVERSION | 1999 |
| XJ 600 S 1 DIVERSION | 2001 |
| XJ 600 S 2 DIVERSION | 2002 |
| XJ 600 S 3 DIVERSION | 2003 |
| XJ 600 S N DIVERSION | 1992 |
| XJ 600 S P DIVERSION | 1993 |
| XJ 600 S R DIVERSION | 1994 |
| XJ 600 S S DIVERSION | 1995 |
| XJ 600 S T DIVERSION | 1996 |
| XJ 600 S V DIVERSION | 1997 |
| XJ 600 S W DIVERSION | 1998 |
| XJ 600 S X DIVERSION | 1999 |
| XJ 600 S Y DIVERSION | 2000 |
| XT 660 R 4 | 2004 |
| XT 660 R 5 | 2005 |
| XT 660 R 6 | 2006 |
| XT 660 R 7 | 2007 |
| XT 660 R 8 | 2008 |
| XT 660 R 9 | 2009 |
| XT 660 R A | 2010 |
| XT 660 R B | 2011 |
| XT 660 R C | 2012 |
| XT 660 R D | 2013 |
| XT 660 R E | 2014 |
| XT 660 R F | 2015 |
| XT 660 R G | 2016 |
| XT 660 X 4 | 2004 |
| XT 660 X 5 | 2005 |
| XT 660 X 6 | 2006 |
| XT 660 X 7 | 2007 |
| XT 660 X 8 | 2008 |
| XT 660 X 9 | 2009 |
| XT 660 X A | 2010 |
| XT 660 X B | 2011 |
| XT 660 X C | 2012 |
| XT 660 X D | 2013 |
| XT 660 X E | 2014 |
| XT 660 X F | 2015 |
| XT 660 X G | 2016 |
| XT 660 Z 8 TENERE | 2008 |
| XT 660 Z 9 TENERE | 2009 |
| XT 660 Z A TENERE | 2010 |
| XT 660 Z A TENERE LE | 2010 |
| XT 660 Z B TENERE | 2011 |
| XT 660 Z C TENERE | 2012 |
| XT 660 Z C TENERE ABS | 2012 |
| XT 660 Z D TENERE ABS | 2013 |
| XT 660 Z D TENERE EXPLORER ABS | 2013 |
| XT 660 Z D TENERE URBAN EXPLORER ABS | 2013 |
| XT 660 Z E ABS | 2014 |
| XT 660 Z F TENERE ABS | 2015 |
| XT 660 Z F TENERE EXPLORER ABS | 2015 |
| XT 660 Z G TENERE ABS | 2016 |
| XT 660 Z G TENERE EXPLORER ABS | 2016 |
| XTZ 750 K SUPER TENERE | 1989 |
| XTZ 750 L SUPER TENERE | 1990 |
| XTZ 750 M SUPER TENERE | 1991 |
| XTZ 750 N SUPER TENERE | 1992 |
| XTZ 750 P SUPER TENERE | 1993 |
| XTZ 750 R SUPER TENERE | 1994 |
| XTZ 750 S SUPER TENERE | 1995 |
| XTZ 750 T SUPER TENERE | 1996 |
| XTZ 750 V SUPER TENERE | 1997 |
