AFAM Steel Rear Sprocket 49T 525 Black 10502-49

AFAM Steel Rear Sprocket 49T 525 Black 10502-49

£42.62 GBP
£42.62 GBP
Sale Sold out
Taxes included.

Product details

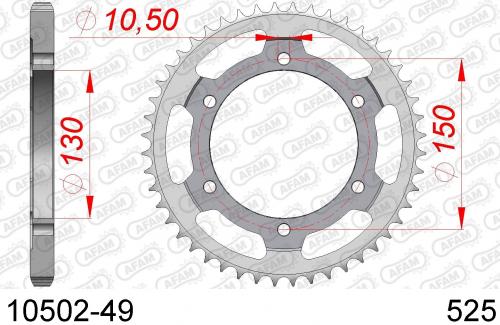

This AFAM steel rear sprocket has 49 teeth and is sized for 525 chain.

  • AFAM part number 10502-49
  • Position Rear
  • Tooth count 49
  • Chain size 525
  • Material Steel
  • Colour Black
  • Coating Cataphoretic coating
  • Centre bore 130 mm
  • Bolt pitch circle diameter 150 mm
  • Mounting hole count 6
  • Mounting hole diameter 10.5 mm

REAR STEEL 49T, 525

Manufacturer part number: 10502-49

Vehicle applications

Applications listed by Phoenix Motos. Check the part specifications and application position before ordering.

HONDA
Model Year
XL 600 V H TRANSALP 1987
XL 600 V J TRANSALP 1988
XL 600 V K TRANSALP 1989
XL 600 V L TRANSALP 1990
XL 600 V M TRANSALP 1991
XL 600 V N TRANSALP 1992
XL 600 V P TRANSALP 1993
XL 600 V R TRANSALP 1994
XL 600 V S TRANSALP 1995
XL 600 V T TRANSALP 1996
XL 600 V V TRANSALP 1997
XL 600 V W TRANSALP 1998
XL 600 V X TRANSALP 1999
XL 600 V Y TRANSALP 2000
XL 650 V 1 TRANSALP 2001
XL 650 V 2 TRANSALP 2002
XL 650 V 3 TRANSALP 2003
XL 650 V 4 TRANSALP 2004
XL 650 V 5 TRANSALP 2005
XL 650 V 6 TRANSALP 2006
XL 700 V 8 TRANSALP ABS 2008
XL 700 V 9 TRANSALP ABS 2009
XL 700 V A TRANSALP ABS 2010
XL 700 V B TRANSALP ABS 2011
XL 700 V C TRANSALP ABS 2012
XL 700 V D TRANSALP ABS 2013
XRV 650 J AFRICA TWIN 1988
XRV 650 K AFRICA TWIN 1989
View full details
