AFAM Steel Rear Sprocket 40T 520 Black 10320-40

AFAM Steel Rear Sprocket 40T 520 Black 10320-40

£29.23 GBP
£29.23 GBP
Sale Sold out
Taxes included.

Product details

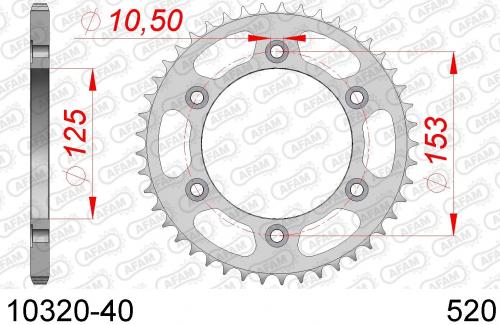

This AFAM steel rear sprocket has 40 teeth and is sized for 520 chain.

  • AFAM part number 10320-40
  • Position Rear
  • Tooth count 40
  • Chain size 520
  • Material Steel
  • Colour Black
  • Coating Cataphoretic coating
  • Centre bore 125 mm
  • Bolt pitch circle diameter 153 mm
  • Mounting hole count 6
  • Mounting hole diameter 10.5 mm

REAR STEEL 40T, 520

Manufacturer part number: 10320-40

Vehicle applications

Applications listed by Phoenix Motos. Check the part specifications and application position before ordering.

HONDA
Model Year
CRF 250 L D 2013
CRF 250 L E 2014
CRF 250 L F 2015
CRF 250 L G 2016
CRF 250 L H 2017
CRF 250 L H RALLY 2017
CRF 250 L J 2018
CRF 250 L J RALLY 2018
CRF 250 L K 2019
CRF 250 L K RALLY 2019
CRF 250 L L 2020
CRF 250 L L RALLY 2020
CRF 250 L M 2021
CRF 250 L M RALLY 2021
CRF 250 M E 2014
CRF 250 M F 2015
CRF 250 M G 2016
CRF 250 M H 2017
XR 250 R N 1992
XR 250 R P 1993
XR 250 R R 1994
XR 250 R S 1995
XR 600 R M 1991
XR 600 R N 1992
XR 600 R P 1993
XR 600 R R 1994
XR 600 R S 1995
XR 600 R T 1996
XR 600 R V 1997
View full details
