AFAM Steel Rear Sprocket 44T 520 Black 10215-44

AFAM Steel Rear Sprocket 44T 520 Black 10215-44

£34.30 GBP
£34.30 GBP
Sale Sold out
Taxes included.

Product details

This AFAM steel rear sprocket has 44 teeth and is sized for 520 chain.

  • AFAM part number 10215-44
  • Position Rear
  • Tooth count 44
  • Chain size 520
  • Material Steel
  • Colour Black
  • Coating Cataphoretic coating

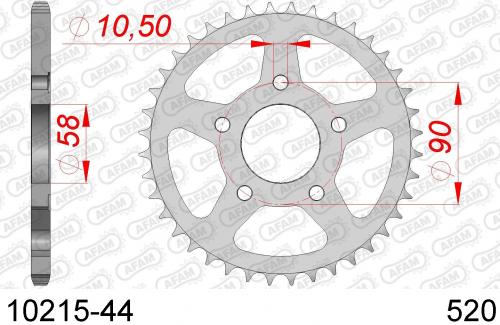

  • Centre bore 58 mm
  • Bolt pitch circle diameter 90 mm
  • Mounting hole count 5
  • Mounting hole diameter 10.5 mm

REAR STEEL 44T, 520

Manufacturer part number: 10215-44

Vehicle applications

Applications listed by Phoenix Motos. Check the part specifications and application position before ordering.

HONDA
Model Year
CRM 125 L 1990
CRM 125 M 1991
CRM 125 N 1992
CRM 125 P 1993
CRM 125 R 1994
CRM 125 S 1995
CRM 125 T 1996
CRM 125 V 1997
CRM 125 W 1998
CRM 125 X 1999
NSR 125 R 1 2001
NSR 125 R 2 2002
NSR 125 R 3 2003
NSR 125 R K 1989
NSR 125 R L 1990
NSR 125 R M 1991
NSR 125 R N 1992
NSR 125 R P 1993
NSR 125 R R 1994
NSR 125 R S 1995
NSR 125 R T 1996
NSR 125 R V 1997
NSR 125 R W 1998
NSR 125 R X 1999
NSR 125 R Y 2000
