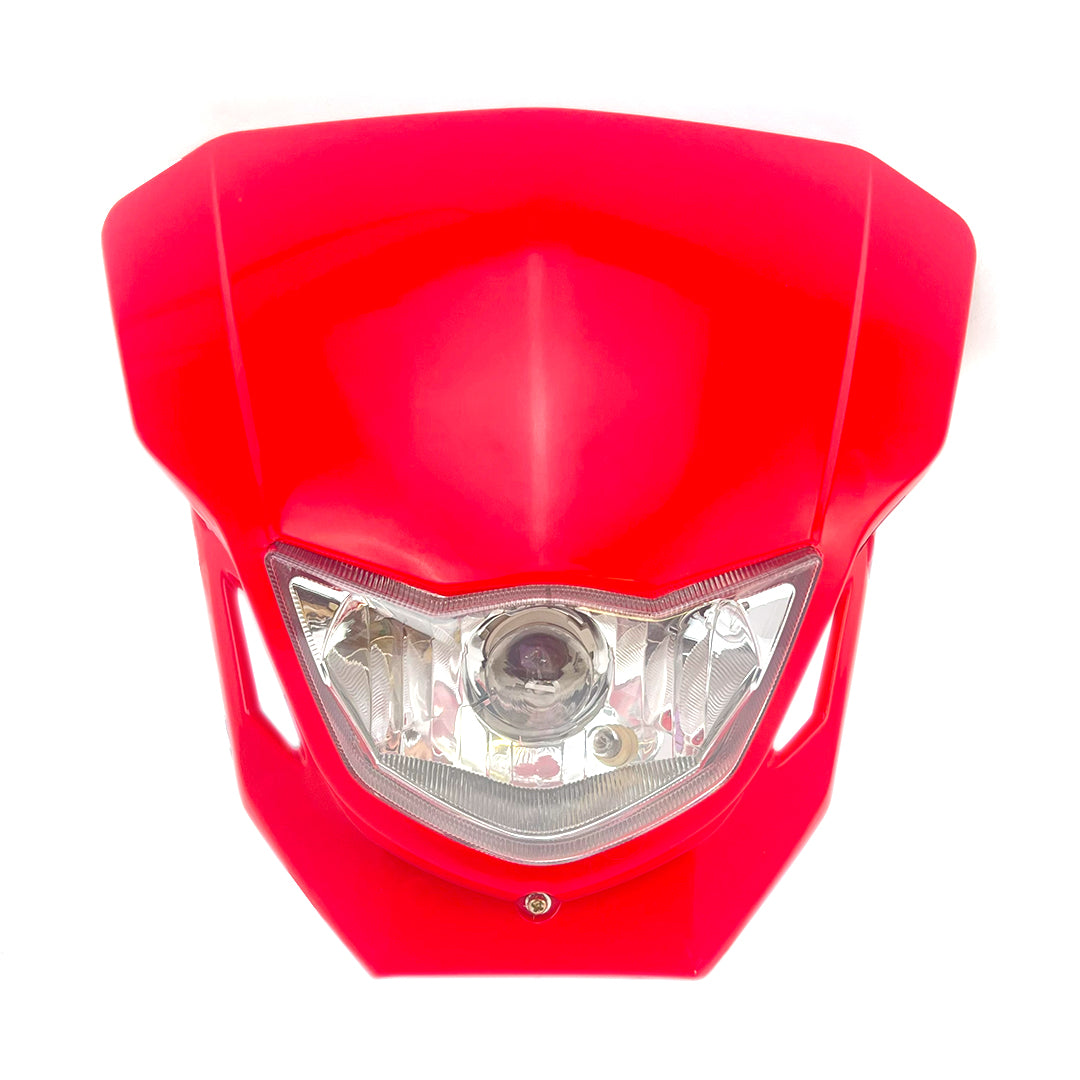

HEADLIGHT UNIVERSAL DIRT HX HL021 RED

This red universal dirt bike headlight is designed for off-road use and includes a Bosh BA20D 12V 35/35W main bulb along with an additional side light bulb. The headlamp features an adjustable beam height from the front. It is equipped with a 4-pin female square socket and standard wire color coding for simple installation.

Features

• Universal fit for dirt bikes
• Fitted with Bosh BA20D 12V 35/35W bulb
• Includes side light bulb
• Adjustable lamp height from the front
• 4-pin female square socket for wiring connection
• Wire color code provided for installation

Specifications

• Headlight Color: Red
• Bulb Type: Bosh BA20D 12V 35/35W + side light bulb
• Number Plate Size: 330mm (W) x 180mm (D)
• Socket Type: 4-pin female square

Wire Color Code:

• Green: Ground / Earth
• Blue: Main Beam
• White: Dip Beam
• Brown: Side Light
