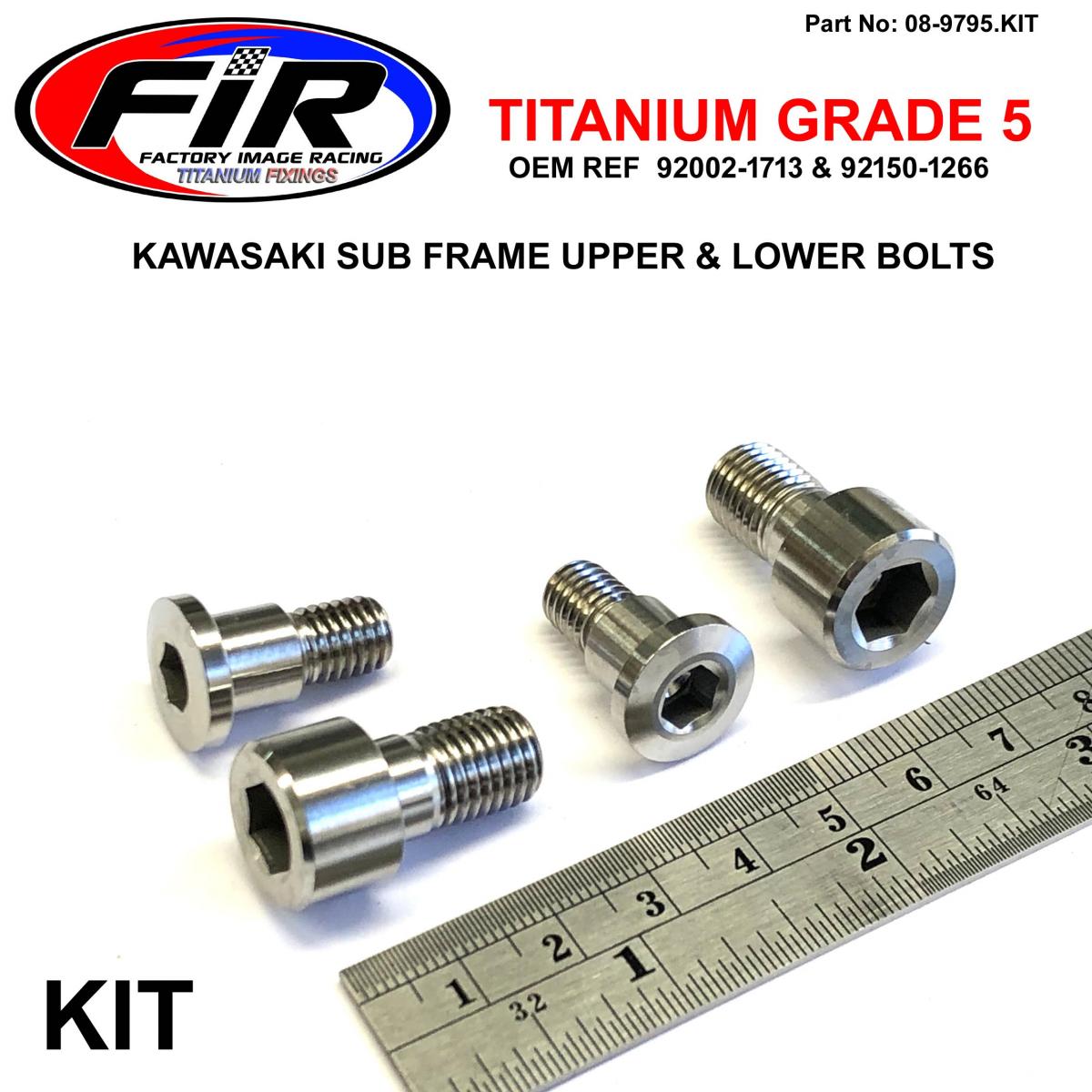

GR5 SUB FRAME BOLT KIT KX500, UPPER & LOWER FIXINGS, 92002-1713 & 92150-1266

TITANIUM GRADE 5 SUB FRAME BOLTS

• BOLT A
• Material: Grade 5 (6Al/4V)
• M10x1.25mm
• Thread D : M10
• Pitch : 1.25mm

• Overall length L: 17.20mm
• Thread length : 11.00mm

• Allen HEX: #8mm

• Flange OD:15.75mm
• Qty : 2
• OEM Ref :92002-1713 / 920021713


• BOLT B
• Material: Grade 5 (6Al/4V)
• M8x1.25mm
• Thread D : M8
• Pitch : 1.25mm

• Overall length L: 19.10mm
• Thread length : 10.00mm

• Allen HEX: #6mm

• Flange OD:15.00mm
• Boss OD: 9.96mm
• Boss L: 8.00mm

• Qty : 2
• OEM Ref : 92150-1266 / 921501266 / 92150-1016

CNC machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

FITMENT:

1988 KX125 (KX125-F1) - Frame
1988 KX250 (KX250-F1) - Frame
1988 KX500 (KX500-D1) - Frame
1989 KX125 (KX125-G1) - Frame
1989 KX250 (KX250-G1) - Frame
1989 KX500 (KX500-E1) - Frame
1990 KX125 (KX125-H1) - Frame
1990 KX250 (KX250-H1) - Frame
1990 KX500 (KX500-E2) - Frame
1991 KX125 (KX125-H2) - Frame
1991 KX250 (KX250-H2) - Frame
1991 KX500 (KX500-E3) - Frame
1992 KX125 (KX125-J1) - Frame
1992 KX250 (KX250-J1) - Frame
1992 KX500 (KX500-E4) - Frame
1993 KX125 (KX125-J2) - Frame
1993 KX250 (KX250-J2) - Frame
1993 KX500 (KX500-E5) - Frame
1994 KX500 (KX500-E6) - Frame
1995 KX500 (KX500-E7) - Frame
1996 KX500 (KX500-E8) - Frame
1997 KX500 (KX500-E9) - Frame
1998 KX500 (KX500-E10) - Frame
1999 KX500 (KX500-E11) - Frame
2000 KX500 (KX500-E12) - Frame
2001 KX500 (KX500-E13) - Frame
2002 KX500 (KX500-E14) - Frame
2003 KX500 (KX500-E15) - Frame
2004 KX500 (KX500-E16) - Frame
