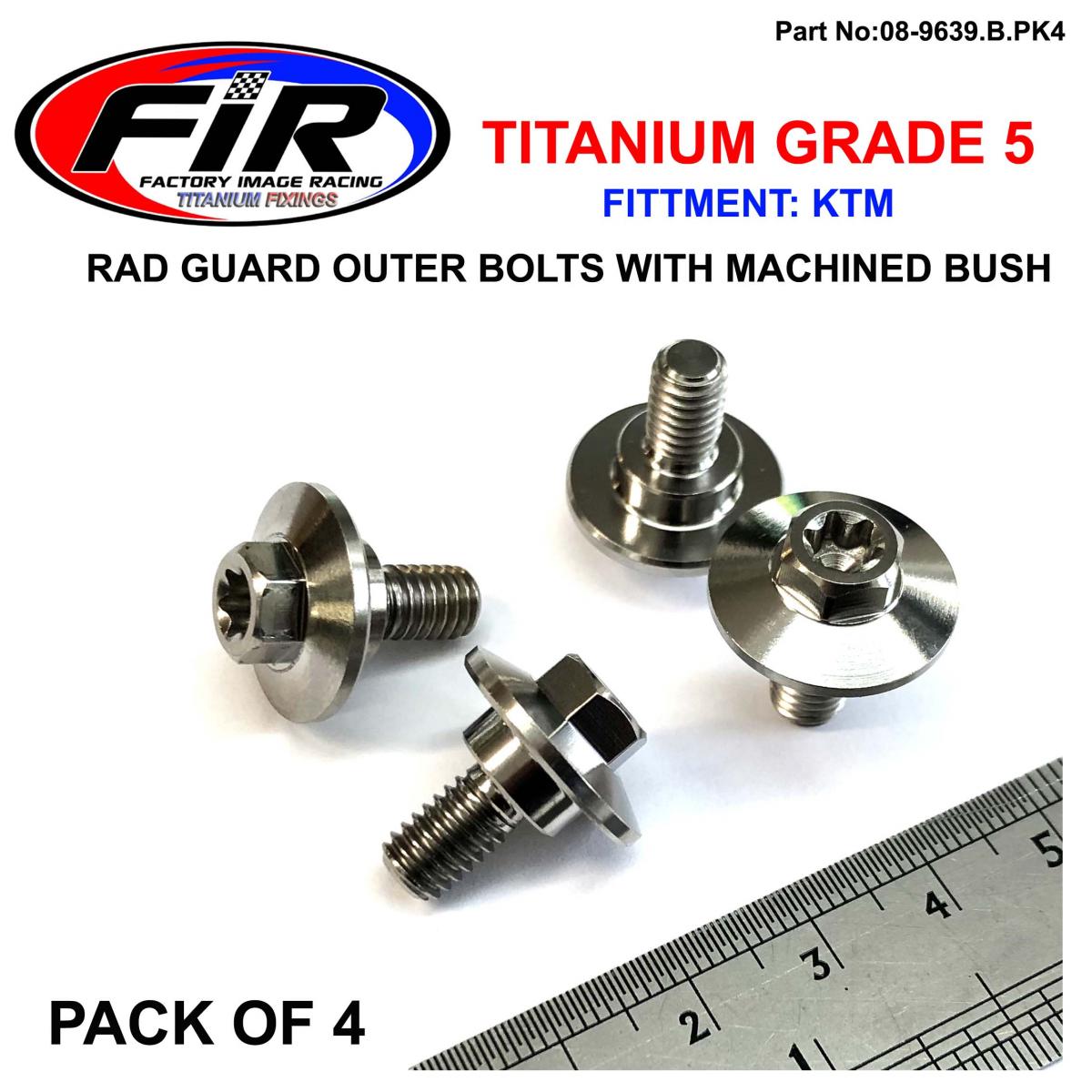

GR5 KTM RAD GUARD OUTER BOLTS PK4 TITANIUM, SX EXC SXF EXCF 16-2020 / WITH BUSH, / 0025060166!!

TITANIUM GRADE 5

THIS BOLT IS USE FOR THE RAD COVER TO RAD SIDE PANEL, PLEASE REMOVE THE OLD BUSH IN THE PLASTICS BEFORE FITTING THE NEW TITANIUM BOLTS AS IT MACHINED WITH THE BUSH ON IT FOR EASY CLEANING AND FITTING.

• Material: Grade 5 (6Al/4V)
• Thread D: M6

• Pitch P: M Coarse 1.00mm
• Overall length L: 13.50mm
• Thread length : 10mm
• Bush OD : 9.95mm
• Bush length : 3.50mm

• Head Dual : T45 Torx & 8mm Spanner

• Head Type : Round

• Flange OD:17.80mm
• Pack size : 4


CNC machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

Part No. 08-9639.B.PK4 (oro2u.com)

Cross reference numbers >0025060166 & 79608052000

THE BOLT HAS BEEN BUILT WITH THE BUSH ON IT.
HH COLLAR SCREW M6X16 TX30 KTM OEM NO:0025060166
BUSH 6X11X16X5 MM KTM OEM NO:79608052000

2017 125 SX - Tank, Seat, Cover
2017 150 SX - Tank, Seat, Cover
2017 150 XC-W - Tank, Seat, Cover
2017 250 EXC-F - Tank, Seat, Cover
2017 250 SX - Tank, Seat, Cover
2017 250 SX-F - Tank, Seat, Cover
2017 250 XC-F - Tank, Seat, Cover
2017 250 XC-W - Tank, Seat, Cover
2017 300 XC - Tank, Seat, Cover
2017 300 XC-W - Tank, Seat, Cover
2017 300 XC-W Six Days - Tank, Seat, Cover
2017 350 EXC-F - Tank, Seat, Cover
2017 350 SX-F - Tank, Seat, Cover
2017 350 XC-F - Tank, Seat, Cover
2017 450 EXC-F Six Days - Tank, Seat, Cover
2017 450 SX-F - Tank, Seat, Cover
2017 450 XC-F - Tank, Seat, Cover
2017 500 EXC-F - Tank, Seat, Cover
2017 65 SX - Tank, Seat, Cover
2018 125 SX - Tank, Seat, Cover
2018 150 SX - Tank, Seat, Cover
2018 150 XC-W - Tank, Seat, Cover
2018 250 EXC-F - Tank, Seat, Cover
2018 250 SX - Tank, Seat, Cover
2018 250 SX-F - Tank, Seat, Cover
2018 250 XC - Tank, Seat, Cover
2018 250 XC-F - Tank, Seat, Cover
2018 250 XC-W - Tank, Seat, Cover
2018 250 XC-W TPI - Tank, Seat, Cover
2018 300 XC - Tank, Seat, Cover
2018 300 XC-W - Tank, Seat, Cover
2018 300 XC-W Six Days - Tank, Seat, Cover
2018 350 EXC-F - Tank, Seat, Cover
2018 350 SX-F - Tank, Seat, Cover
2018 350 XC-F - Tank, Seat, Cover
2018 450 SX-F - Tank, Seat, Cover
2018 450 XC-F - Tank, Seat, Cover
2018 500 EXC-F - Tank, Seat, Cover
2018 65 SX Mini - Tank, Seat, Cover
2019 150 XC-W - Tank, Seat
2019 250 EXC-F - Tank, Seat
2019 250 XC-W TPI - Tank, Seat
2019 300 XC-W TPI - Tank, Seat
2019 350 EXC-F - Tank, Seat
2019 450 EXC-F SIX DAYS - Tank, Seat
2019 65 SX - Tank, Seat
2020 65 SX - Tank, Seat
