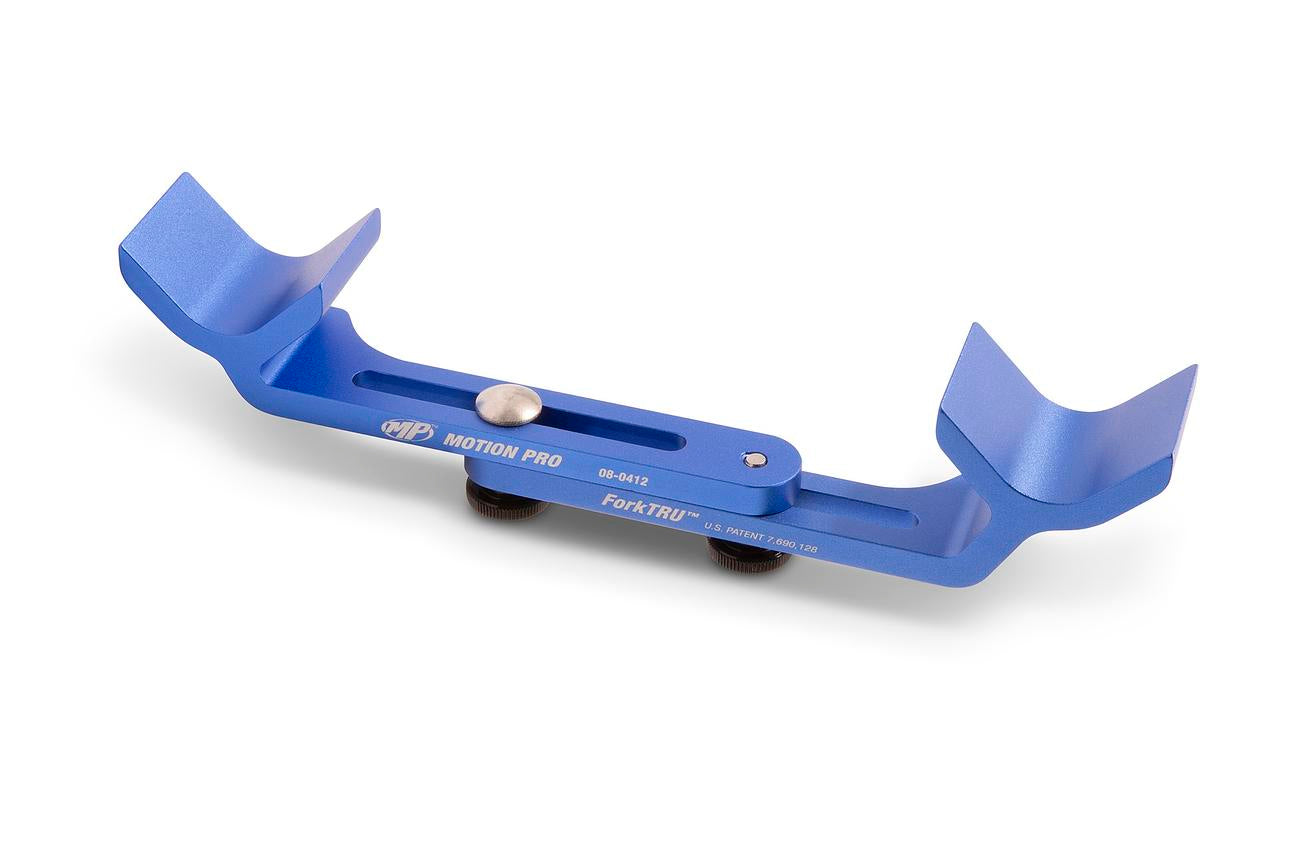

FORK ALIGN TOOL FORKTRU MOTION PRO 08-0412

The Motion Pro ForkTru™ Fork Alignment Tool is designed to ensure that front forks are parallel from top to bottom, enhancing suspension performance and reducing wear.

Features:

• Quick and easy-to-use tool for aligning front forks.
• Knurled adjustment screws for easy setup.
• Reduces stiction and improves front suspension performance.
• Decreases seal and bushing wear.
• Fits most MX and off-road motorcycles; not compatible with most sport bikes due to larger brake rotor diameter and 17-inch wheel size.
• Compatible with fork legs and tubes measuring 27 mm to 62 mm in diameter.
• Suitable for forks spaced 140 mm to 220 mm apart (centre to centre).

Cross Reference Numbers:

• 08-0412

Motion Pro has developed a simple but ingenious way to align the forks on off-road and MX motorcycles. With the ForkTRU™, you will always know your fork legs are perfectly parallel from top to bottom. Correct fork alignment reduces stiction, which allows the suspension to work freely, leading to better handling and increasing the life of your fork seals and bushings.

Simple to use, all you do is set the ForkTRU™ to the width of the upper fork tubes below the triple clamp, then move it to the bottom fork tubes where you can precisely adjust your fork width to match the top. The age-old method of pushing your forks up and down will only leave you guessing if they’re aligned properly, but the ForkTRU™ will give you the accurate results you’re looking for with no measuring needed.
