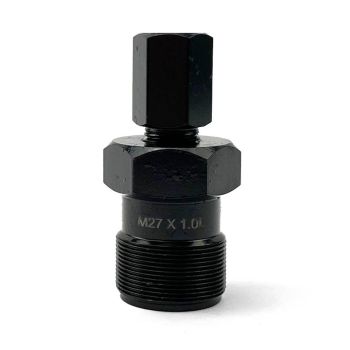

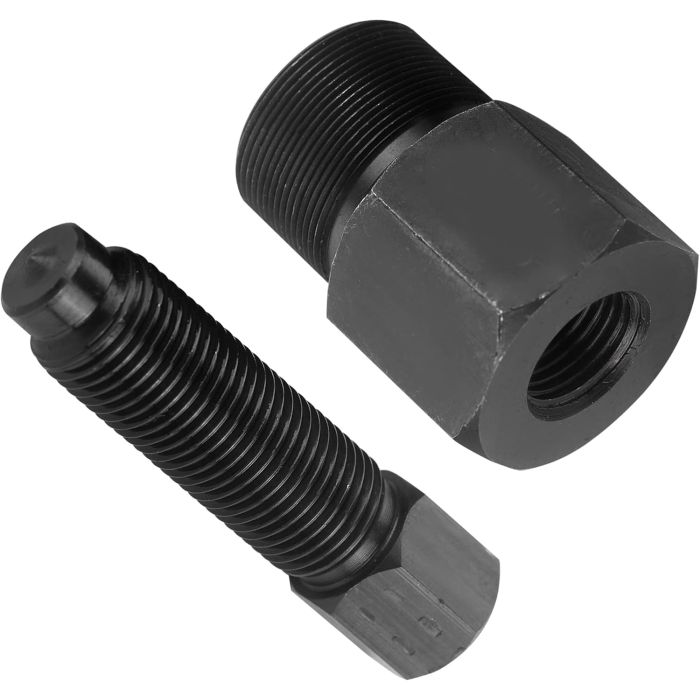

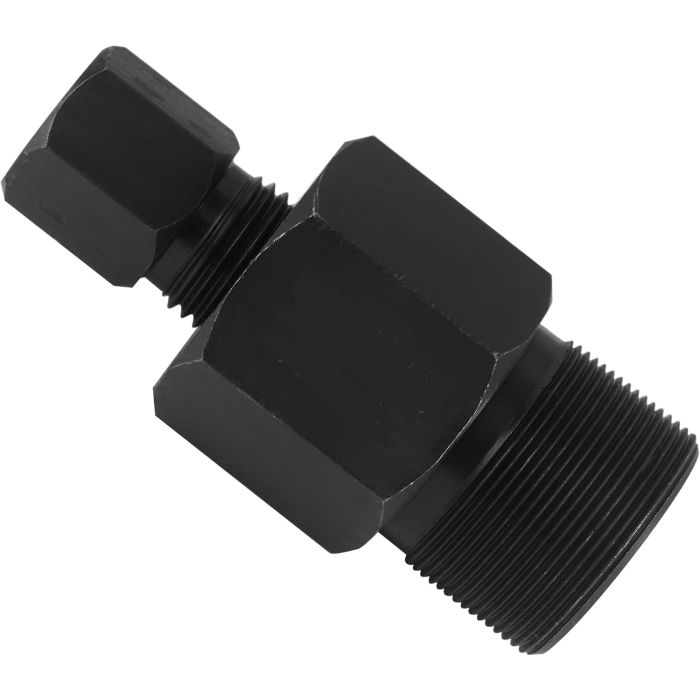

FLYWHEEL PULLER M27 x 1.00 LH

This flywheel puller is designed with a left-hand M27 x 1.00 thread and is ideal for removing flywheels or rotors from a range of motorcycles, including models from Honda, Yamaha, Suzuki, Kawasaki, KTM, and more. Made from premium high-carbon steel (S45C), it is heat-treated for strength and durability, with a black oxide finish for added longevity. The puller features a 17mm bolt head and a 40mm long body.

The tool is compatible with a wide variety of vehicles and can be cross-referenced with part numbers such as BUZZETTI 5250, MOTION PRO 08-0026, and others. To ensure safe and effective use, make sure the flywheel thread is clean, apply copper grease to the threads, and ensure the puller is fully screwed into place before applying pressure.

Features:

• Used for removing flywheels or rotors
• Made from premium high-carbon steel (S45C)
• Heat-treated for increased strength and durability
• Black oxide finish for enhanced protection
• 27mm x 1.00P LH external thread
• Bolt head size: 17mm
• Body length: 40mm
• Length: 62mm

Specifications:

• Material: High-carbon steel (S45C)
• Finish: Black oxide
• Thread: M27 x 1.00 LH (Left-hand thread)
• Bolt head size: 17mm
• Puller length: 62mm
• Body size: 40mm

Cross-reference OEM Part Numbers:

• BUZZETTI 5250
• MOTION PRO 08-0026, 35-5931, MP1, YM-01189, 07933-0010000, 57001-252, 54629009044, 09930-30113

Vehicle Compatibility:

Honda

• CRF50F: 2004–2011
• XR50R: 2000–2003
• CRF70F: 2004–2011
• CR80/CR85: 1983–2008
• CRF80F: 2004–2011
• XR80: 1979–2003
• CRF100F: 2004–2012
• XR100/R: 1981–2003
• CR250R: 1984–2007
• CR450R: 1981
• CR500: 1984–2001

Kawasaki

• KDX50: 2003–2006
• KX60: 1983–2003
• KX65: 2000–2012
• KDX80: 1980–1988
• KX80/85/100: 1998–2012
• KX125: 1993–2005
• KDX200: 1997–2006
• KDX220: 1997–2005
• KDX250: 1991–1994
• KX250: 1992–2007
• KX500: 1984–2004

KTM

• 65SX: 1999–2012
• 65XC: 2008
• 85SX: 2004–2010
• 85XC: 2008
• 105XC: 2008–2012
• 125EXC: 1998–2002
• 125SX: 1998–2011
• 144SX: 2008
• 150SX: 2009–2010
• 150XC: 2010–2011
• 200EXC: 1998–2005
• 200MXC: 1998–2002
• 200XC: 2006–2009
• 200XCW: 2006–2012
• 250EXC: 2000–2005
• 250MXC: 2000–2002
• 250SX: 2000–2012
• 250XC: 2006–2007
• 300EXC/MXC: 1998–2005
• 300XC/XCW: 2006–2007
• 380EXC/MXC/SX: 1998–2001

Suzuki

• RM60: 2003
• RM65: 2003–2005
• DR100: 1983–1990
• RM100: 2003
• DR125: 1982–1988
• DRZ125/L: 2003–2009
• RM125: 1996–2008
• DR200: 1986–1988
• RM250: 1989–2008
• RMX250: 1989–1998

Yamaha

• DT50: 1976–1988
• IT125: 1980–1982
• IT200: 1984–1985
• TT250: 1980–1982
• TT500: 1976–1981
• TT-R125: 2000–2012
• TT-R250: 2000–2001
• PW50: 1981–2003
• PW80: 1983–2003
• RT100: 1990–1999
• RT180: 1990–1995
• WR250Z: 1992–2003
• WR500Z: 1992–1993
• YZ125: 1976–2008
• YZ250: 1976–2008
• YZ400F: 1998–1999
• YZ426F: 2000–2001
• YZ465: 1980–1981
• YZ490: 1983–1990
