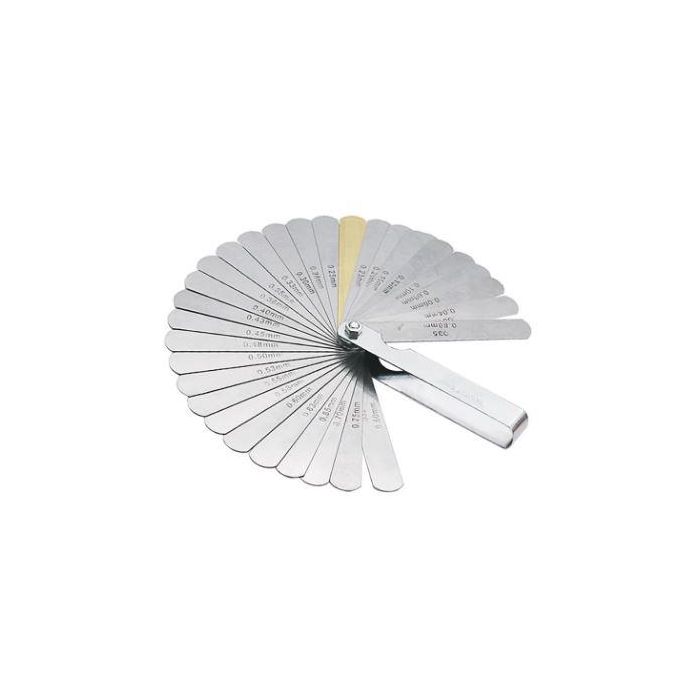

FEELER GAUGE METRIC / IMPERIAL, 32 SIZES / 0.04-0.88mm / 0.0015-0.035inch

Piece Length: approx. 89mm

Total length: approx. 180mm

Measuring range: 0.04-0.88mm

Accuracy: +0.005 /-0.003mm

Foot body using 65 # Mn

Polished surface

Metric and inch comparison

Foot body 3.5 "

Compliance with DIN2275 and JIS B 7524-1992 product standards

Foot piece specifications (32 kinds):

Blade Sizes Metric: 0.04, 0.05, 0.06, 0.08, 0.10, 0.13, 0.15, 0.18, 0.20, 0.23, 0.25, 0.28, 0.30, 0.33, 0.35, 0.38, 0.40, 0.43, 0.45, 0.48, 0.50, 0.53, 0.55, 0.58, 0.60, 0.63, 0.65, 0.70, 0.75, 0.80, 0.88mm

Blade Sizes Imperial: 0.0015, 0.002, 0.0025, 0.003, 0.004, 0.005, 0.006, 0.007, 0.008, 0.009, 0.010, 0.011, 0.012, 0.013, 0.014, 0.015, 0.016, 0.017, 0.018, 0.019, 0.020, 0.021, 0.022, 0.023, 0.024, 0.025, 0.026, 0.028, 0.030, 0.032, 0.035inch

Package included:

1 x 32 blades feeler gauge

Checks flatness or gaps between mating parts.

Feeler thickness gauge includes a steel case.

Locknut holds one or more leaves in any position

Each blade has been hardened, tempered and polished

Clear etching of thickness for easy identification.

Blades fold into the holder for safe keeping.

Part No. 00-881.FIR (phoenixmotos.com)
