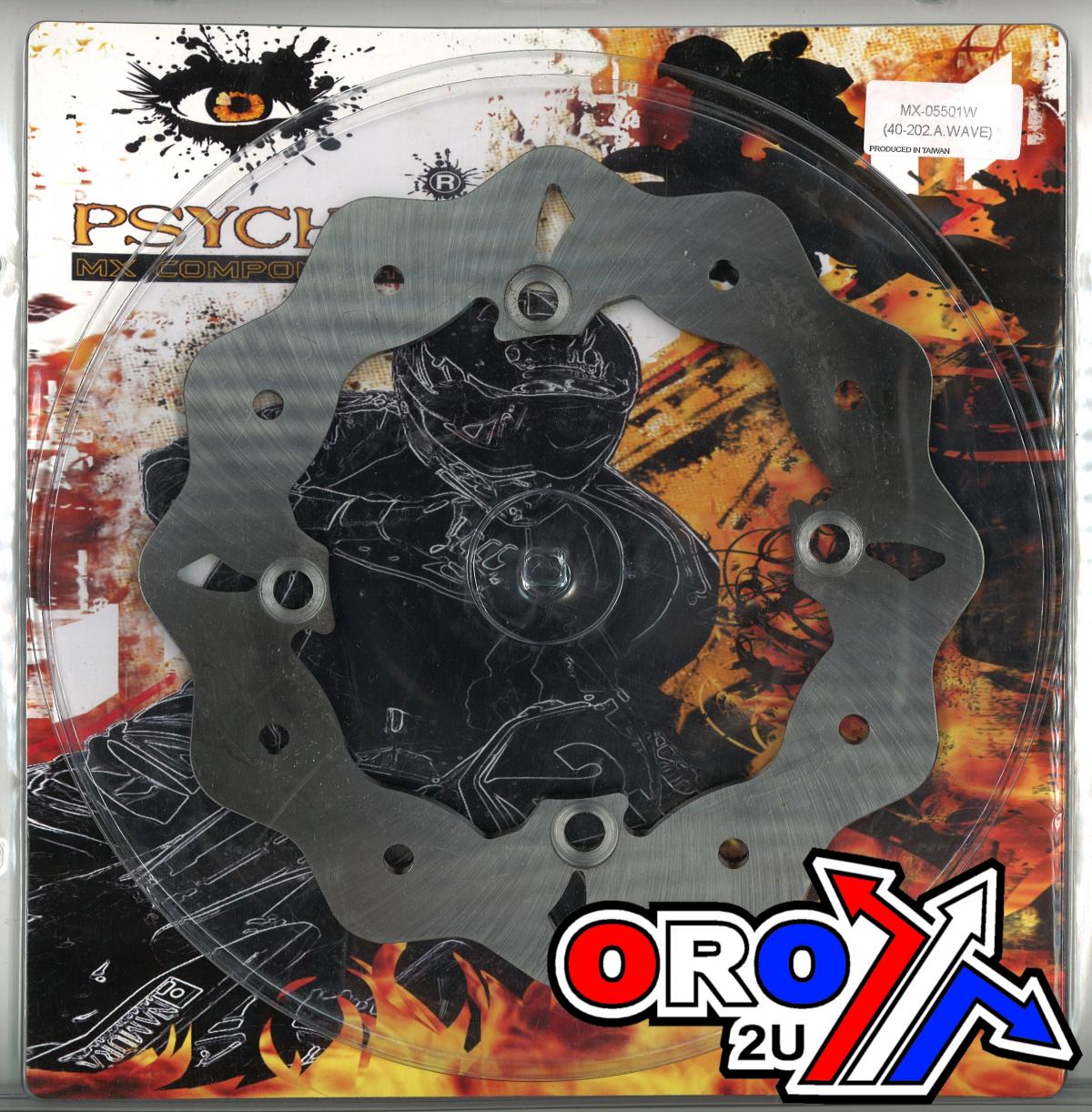

DISC BRAKE REAR CR125 250 500, PSYCHIC MX-05501W HONDA

Rear brake disc rotor designed for Honda models, made from heat-treated SUS420 stainless steel. This rotor is durable, lightweight, and optimized for heat dissipation, ensuring efficient braking performance. A direct OEM replacement, it offers excellent value and compatibility with various brake pads.

Features:

• Constructed from tempered SUS420 stainless steel for durability.
• Lightweight design for enhanced braking performance and heat dissipation.
• Hardness rating: HRC 32-36.
• Direct OEM replacement for an easy installation process.
• Compatible with all types of brake pads.

Specifications:

• Outer diameter (OD): 220 mm
• Inner diameter (ID): 121 mm
• Pitch circle diameter (PCD): 140 mm
• Number of bolt holes: 4
• Bolt hole diameter: 10.5 mm (countersunk)
• Thickness: 4.5 mm

Cross-Reference OEM Part Numbers:

• EBC MD6002D
• JTD1117SC01
• PROX 37.BD21289
• CROSS-CENTER 5100-0023
• 51614-MAC-680ZA
• 45351-MAC-680

Compatibility:

Honda CR Series:

• CR125R: 1989-1997
• CR250R: 1989-1996
• CR500R: 1989-2000

Honda XLR/CRM Series:

• XLR/CRM 125: 1993-1997

Note: Verify compatibility with your motorcycle model and review product images before ordering.

Part Number: 40-202.A.WAVE
