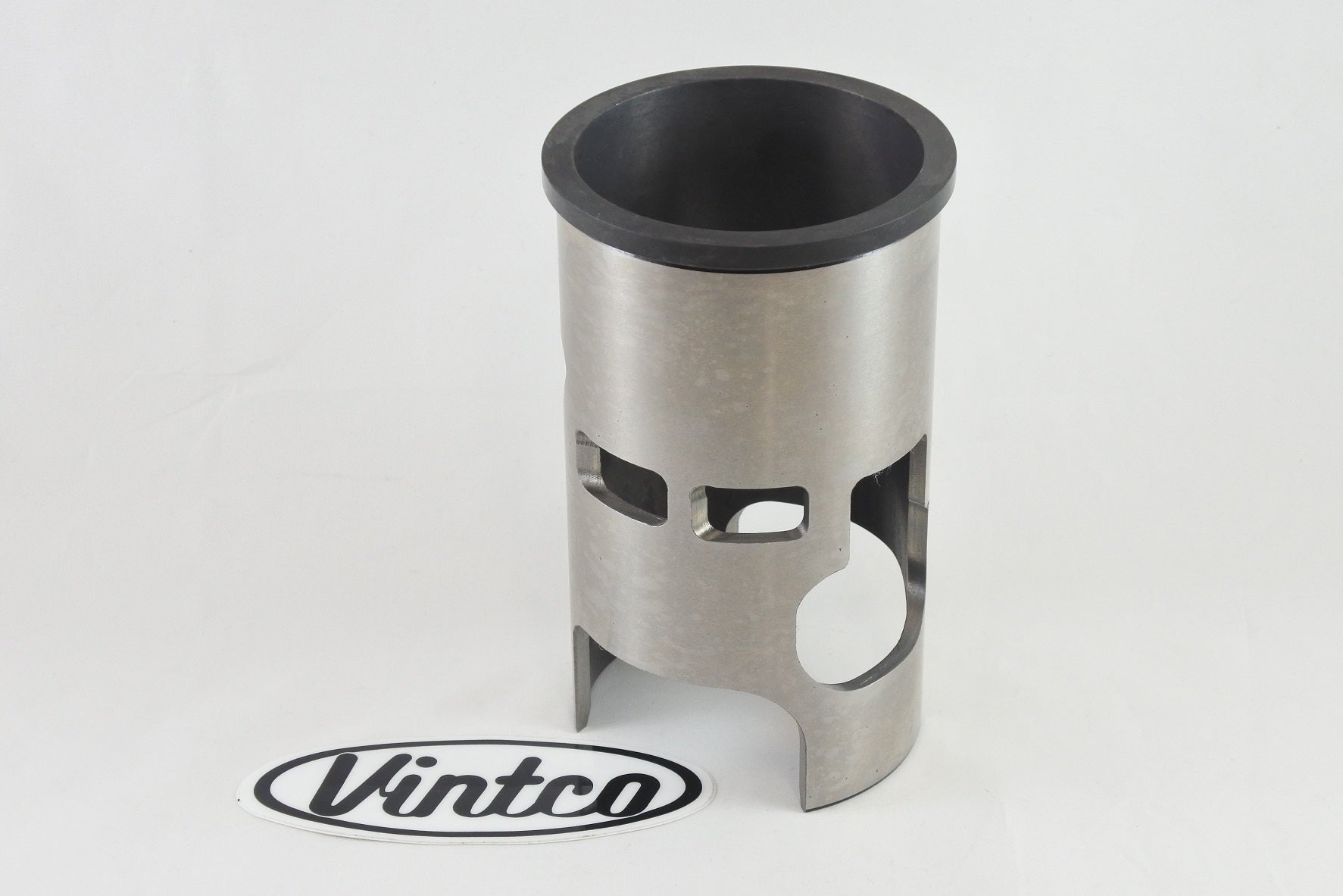

CYLINDER SLEEVE 78-80 HONDA CR 250 70mm VINTCO SLH06A

This cylinder sleeve is a USA-made cast-iron replacement for 1978-1980 Honda CR250 models, manufactured for VintCo by Advanced Sleeve. It is intended for vintage machine cylinder repair, with correctly angled ports to reduce port-matching work, and is supplied with full dimensional information for installation by an experienced and qualified machinist. The sleeve can be bored and honed to suit the stock-size VintCo piston kit PSH06-00.

Features

• Replacement cylinder sleeve for vintage Honda CR250 models
• Correctly angled ports reduce port-matching work during installation
• Suitable for installation by an experienced and qualified machinist
• Can be bored and honed to suit the stock-size VintCo piston kit

Specifications

• VintCo Part Number: SLH06A
• Product type: Cylinder sleeve
• Manufactured for VintCo by: Advanced Sleeve
• Material: Cast iron
• Country of manufacture: USA
• Compatible piston part number: PSH06-00
• Bore: 70 mm
• Height: 136.1 mm
• OD: 76.6 mm
• Flange OD: 81.7 mm
• Flange height: 5.1 mm
• Wall thickness: 3.8 mm
• Intake: 51.5 mm
• Exhaust port location: 38.3 mm

Vehicle Fitments

• 1978 Honda CR250
• 1979 Honda CR250
• 1980 Honda CR250
