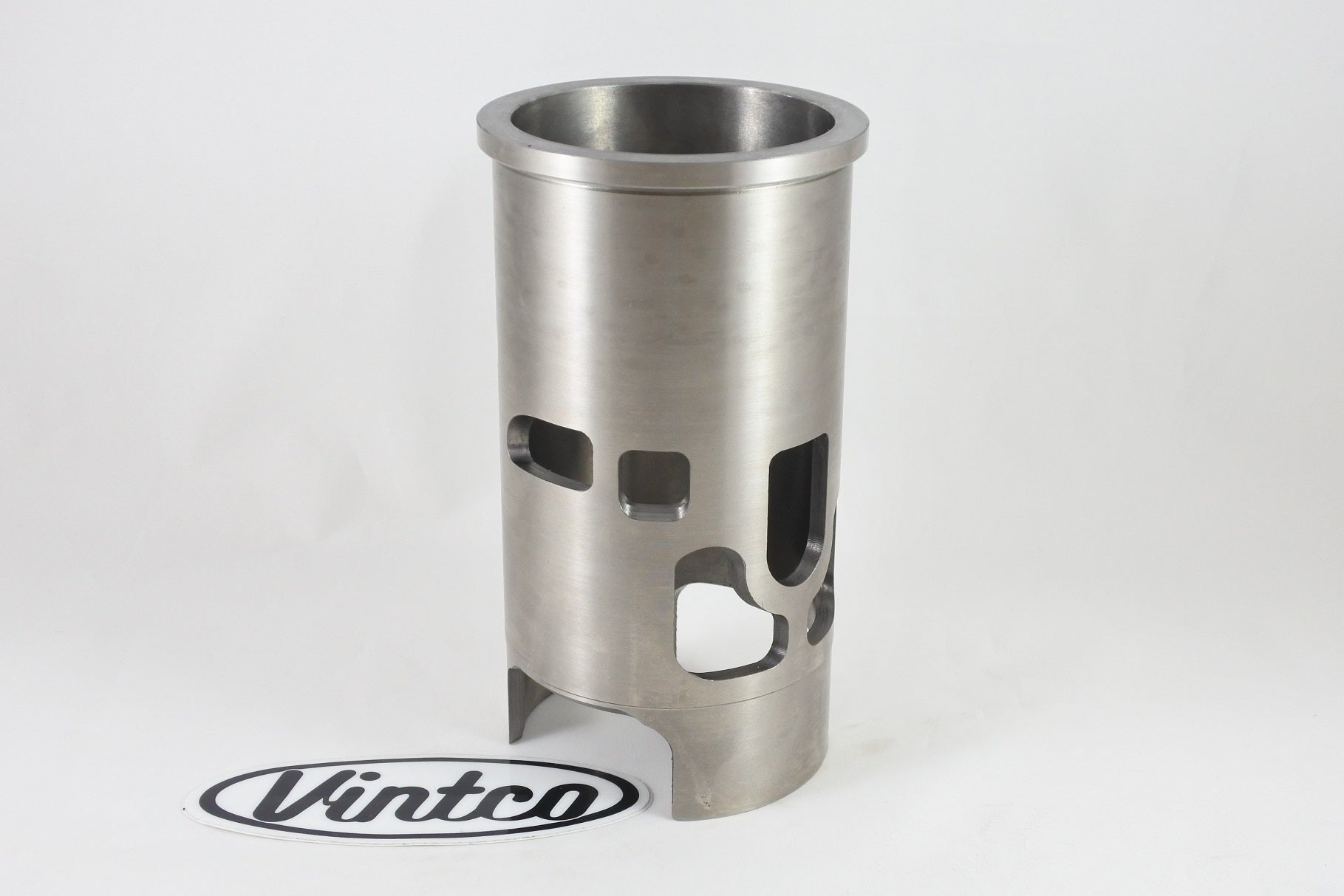

CYLINDER SLEEVE 78-79 MAICO 250 67mm VINTCO SLM01B

VintCo SLM01B is a replacement cylinder sleeve for 1978-1979 Maico 250 models, intended for rebuilding original cylinders when replacement cylinders are difficult to source. Made in the USA for VintCo by Advanced Sleeve, this cast-iron sleeve is produced using modern materials and manufacturing methods and is designed to provide OEM-equivalent or improved fit and performance. The ports are angled to reduce port-matching work, and the sleeve can be bored and honed to suit the stock-size VintCo piston kit PSM01-00. Dimensional information is provided for installation by an experienced and qualified machinist.

Features

• Replacement cylinder sleeve for vintage Maico 250 models
• Suitable for rebuilding original cylinders when replacements are difficult to find
• Made in the USA
• Made for VintCo by Advanced Sleeve
• Manufactured using modern materials and manufacturing techniques
• Designed for OEM-equivalent or improved fit and performance
• Correctly angled ports to reduce port-matching work
• Can be bored and honed to suit the stock-size VintCo piston kit
• Intended for installation by an experienced and qualified machinist

Specifications

• VintCo Part Number: SLM01B
• Associated piston part number: PSM01-00
• Material: Cast iron
• Bore: 67 mm
• Height: 144.6 mm
• Outside diameter: 74 mm
• Flange outside diameter: 80 mm
• Flange height: 5.1 mm
• Wall thickness: 4.1 mm
• Intake: 32 mm
• Exhaust port location: 39.7 mm

Vehicle Fitments

• 1978 Maico 250
• 1979 Maico 250
