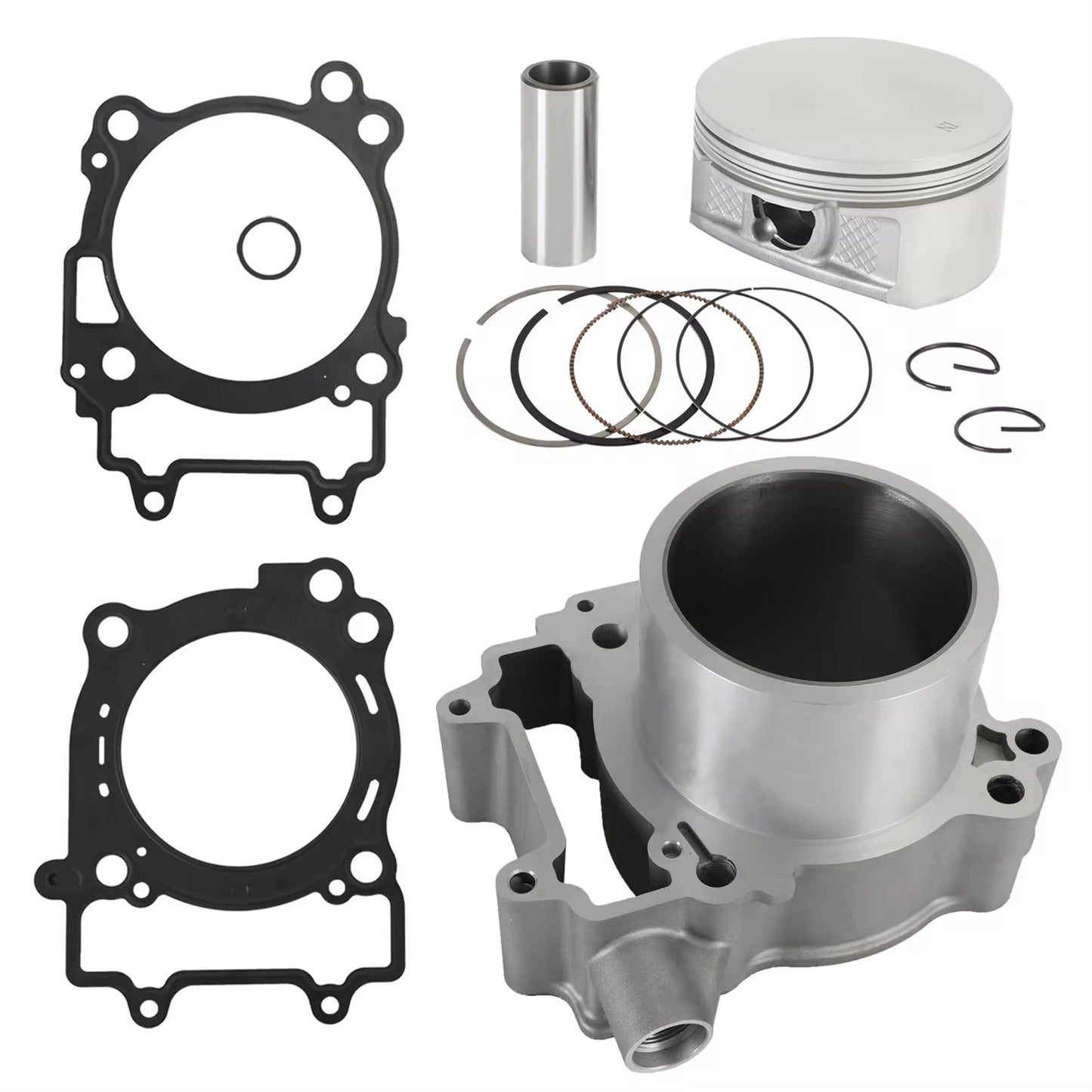

CYLINDER PISTON KIT 93mm POLARIS 2017-2024 SPORTSMAN 450 2017-2020 RANGER 500 3022701 3024040

Compatible Models:

Polaris

• Sportsman 450 2017-2024
• Ranger 500 2017-2020

Features:

• Unmatched reliability and performance from high-tech materials.
• Manufactured to exacting standards for confident engine rebuilds.
• Meets or exceeds OEM quality.
• Direct OEM replacement.
• Please see image before ordering to avoid mistakes.
• Best value for money.
• ORO products are high-quality replacement parts and come with a satisfaction guarantee.
• Easy to install, but if unsure, please consult a professional.

Cross Reference Numbers Only:

• 3022701, 3024040
• BASE GASKET: 5262008
• 1 CYLINDER HEAD GASKET, 93 MM: 5814301
• PISTON KIT, 93 MM (Incl. Standard Size Piston, Pin, Clips, Ring Set): 2206357
• K-RING, STD, 93MM (Ring, Oil Scraper Ring, and Second Compression Ring): 2206358
• PISTON PIN, 22 MM X 12.8 MM X 5: 3022291
• C-CLIP, ROUND: 7710479

Assemblies Where 3022701 is Used:

• 2017 450 FARMHAND HD 2X4 (A17SAH50A5) - Engine, Cylinder
• 2017 ACE 500 SOHC (A17DAA50A7) - Engine, Cylinder
• 2017 RANGER 500 2WD HDPE (R17RM250A1) - Engine, Cylinder
• 2017 RANGER 500, ETX, HDPE (R17RMA50A4/A1) - Engine, Cylinder
• 2017 SPORTSMAN 450 HO (A17SEA50A1/A5/SEE50A1/SEG50A4) - Engine, Cylinder
• 2018 450 SPORTSMAN HD 2X4 (A18SAA50N5) - Engine, Cylinder
• 2018 ACE 500 SOHC (A18DAA50B7) - Engine, Cylinder
• 2018 RANGER 500, HDPE (R18RMA50B4/B1) - Engine, Cylinder
• 2018 RANGER 500 2WD HDPE (R18RM250B1) - Engine, Cylinder
• 2018 SPORTSMAN 450 HO (A18SEA50B1/B5/SEE50B5/B8/SEG50B8) - Engine, Cylinder
• 2019 ACE 500 SOHC (A19DBA50A5) - Engine, Cylinder
• 2019 RANGER 500 (R19RMA50B4/B1) - Engine, Cylinder
• 2019 RANGER 500 2WD HDPE (R19RM250B1) - Engine, Cylinder
• 2019 SPORTSMAN 450 HD 2X4 (A19SAA50D5) - Engine, Cylinder
• 2019 SPORTSMAN 450 HO (A19SEA50B1/B7/SEE50B7/B3/SEG50B4) - Engine, Cylinder
• 2020 RANGER 500 (R20MAA50B1/B7) - Engine, Cylinder
• 2020 RANGER 500 HDPE ISRL (R20MAA50J7) - Engine, Cylinder
• 2020 SPORTSMAN 450 HO (A20SEA50A1/A5/CA1/CA5) - Engine, Cylinder
• 2020 SPORTSMAN 450 HO EPS (A20SEE50A1/A5/CA1/CA5) - Engine, Cylinder
• 2020 SPORTSMAN 450 HO UTL (A20SEG50A1/A5/CA1/CA5) - Engine, Cylinder
• 2021 RANGER 500 (R21MAA50B1/B7) - Engine, Cylinder
• 2021 RANGER 500 2WD (R21RM250A1) - Engine, Cylinder
• 2021 RANGER 500 IS (R21MAA50J7) - Engine, Cylinder
• 2021 SPORTSMAN 450 HO (A21SEA50A1/A5/CA1/CA5) - Engine, Cylinder
• 2021 SPORTSMAN 450 HO EPS (A21SEE50A1/A5/CA1/CA5) - Engine, Cylinder
• 2021 SPORTSMAN 450 HO UTILITY (A21SEG50A1/A5/CA1/CA5) - Engine, Cylinder
• 2022 RANGER 500 (R22MAA50A1/A7) - Engine, Cylinder
• 2022 RANGER 500 IS (R22MAA50J7) - Engine, Cylinder
• 2022 SPORTSMAN 450 HO (A22SEA50A1/A5) - Engine, Cylinder
• 2022 SPORTSMAN 450 HO EPS (A22SEE50A1/A5) - Engine, Cylinder
• 2022 SPORTSMAN 450 HO UTILITY (A22SEG50A1/A5) - Engine, Cylinder
• 2023 SPORTSMAN 450 HO 50S (A23SEA50B1/B3) - Engine, Cylinder
• 2023 SPORTSMAN 450 HO EPS 50S (A23SEE50B1/B3) - Engine, Cylinder
• 2023 SPORTSMAN 450 HO UTL 50S (A23SEG50B1/B3) - Engine, Cylinder
• 2024 SPORTSMAN 450 EPS HO 50S (A24SEE50B1/B3) - Engine, Cylinder
• 2024 SPORTSMAN 450 HO 50S (A24SEA50B1/B3) - Engine, Cylinder
• 2024 SPORTSMAN 450 HO UTILITY 50S (A24SEG50B1/B3) - Engine, Cylinder
