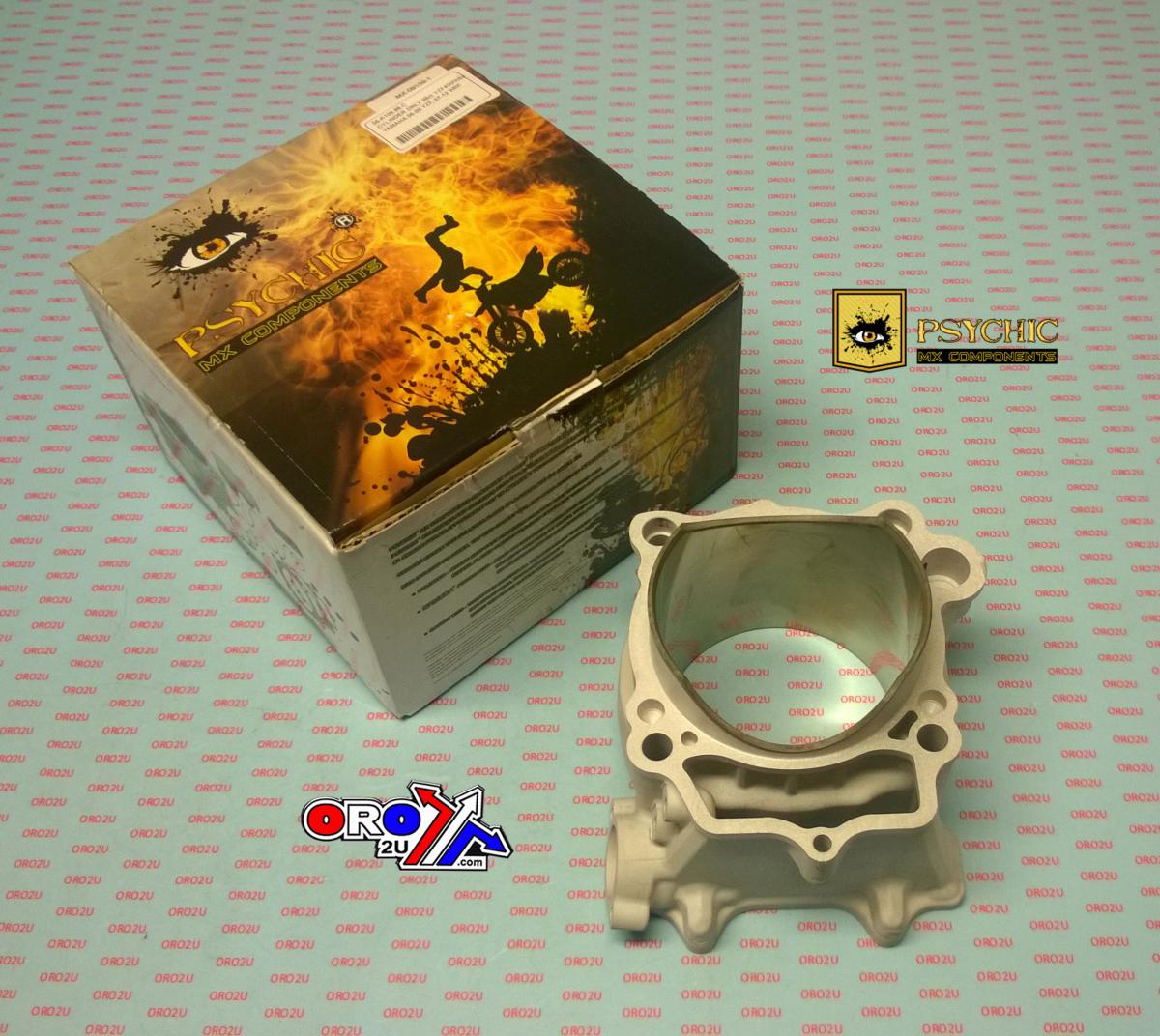

CYLINDER ONLY 06-15 YAMAHA YZF450 WRF 98mm PSYCHIC MX-09159-1 CA-40000-BB3

YAMAHA

• YZF 450 2006-2009,
• WRF 450 2007-2015,
• YFZ 450R/X 2009-2015 (ATV)

CYLINDER DETAILS

• Type: CYLINDER ONLY BIG BORE
• Bore Size: 98.00mm OVERSIZE +3.00mm
• Manufacturer: PSYCHIC
• Part Number: MX-09159-1
• Material: Cast from AB4C aluminum
• Sleeve: NIKASIL plated sleeves
• Sleeve Hardness: HV500~600
• Sleeve Thickness: 0.08 +/- 0.02mm
• Cylinder Material: JIS AC4B-T6 Aluminum, hardness HR65up

Additional Information

• This cylinder is brand new and designed strictly in accordance with OEM specifications.
• Most cylinders can be installed as a simple drop-in without the need for any case modifications.

Cross Reference Numbers

• OEM Part Numbers: 2S2-11311-10-00, 2S2-11311-11-00

Part Number

• 56-K108.98.C
