Dirt Racing

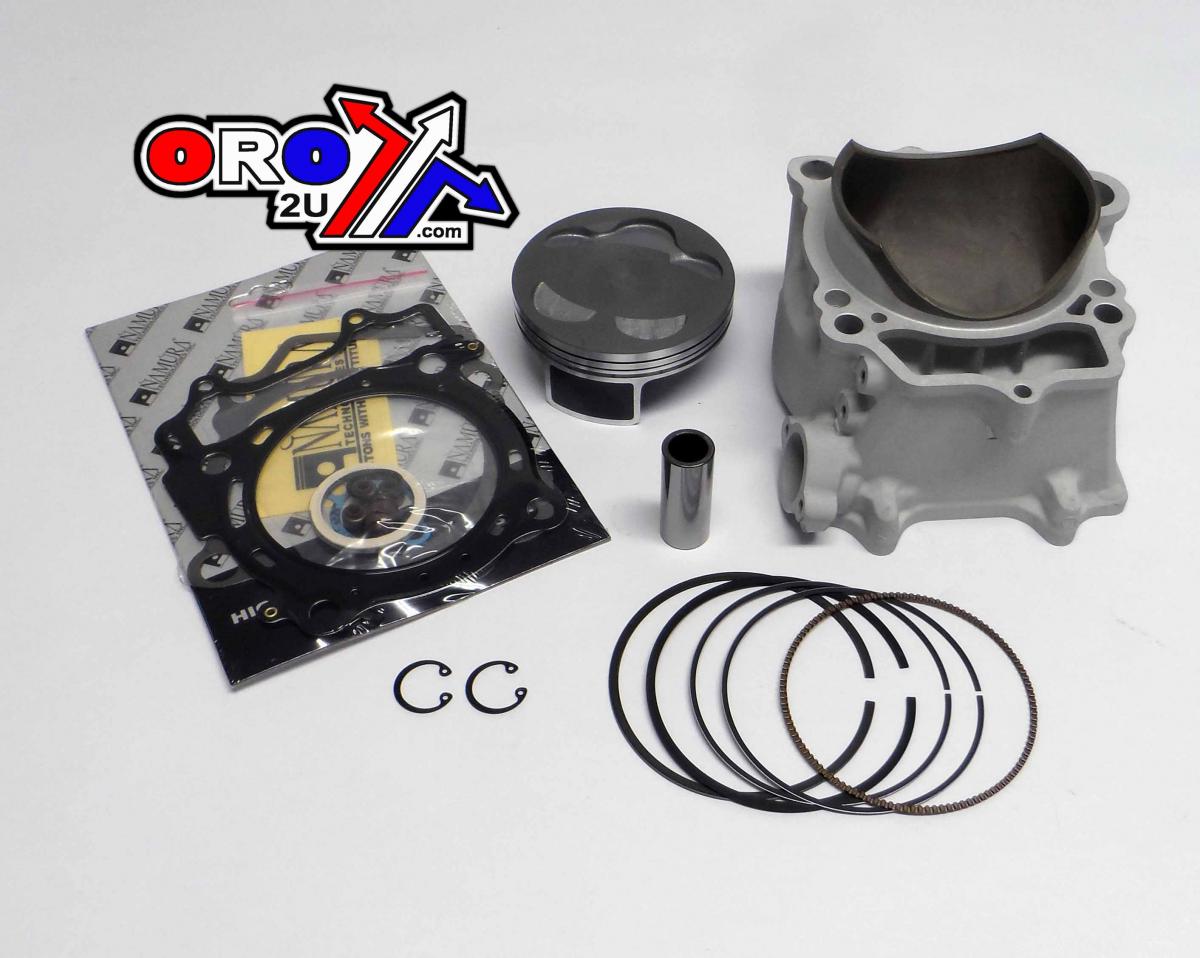

CYLINDER KIT 95.00mm YAMAHA YFZ450R 09-20 AT-09472K 2S2-11311-10-00

CYLINDER KIT 95.00mm YAMAHA YFZ450R 09-20 AT-09472K 2S2-11311-10-00

Regular price £255.55 GBP
Regular price Sale price £255.55 GBP
Sale Sold out
Taxes included.

YAMAHA ATV Parts:

  • YFZ450R 2009 - 2020
  • YFZ450X 2010 - 2011

CYLINDER REBUILD KIT STD BORE 95.00mm

  • Brand New and Designed Strictly Off the OEM Specifications.
  • Cast from AB4C Aluminum with Nikasil Plated Sleeves.
  • Most Cylinders are Simple Drop-in Install with No Case Modifications Necessary.

Cylinder Details:

  • Sleeve: Nikasil
  • Hardness: HV500~600
  • Thickness: 0.08 +/- 0.02mm
  • Cylinder Material: JIS AC4B-T6 Aluminum, Hardness HR65up

Part No.: 56-K136.95.KIT (Available at oro2u.com)

Cross-reference numbers ONLY:

  • Piston: NA-40009H
  • Gasket, Cylinder Head: 2S2-11181-00-00
  • Gasket, Cylinder BASE: 2S2-11351-00-00
  • Cylinder: 2S2-11311-10-00 / 2S2-11311-11-00
  • Piston (Std): 5TG-11631-11-00 / 5TG-11631-12-00
  • Piston Ring Set (Std): 5TG-11603-00-00
  • Pin, Piston: 5TG-11633-10-00
  • Circlip: 93450-22027-00
  • PSYCHIC AT-09472K
