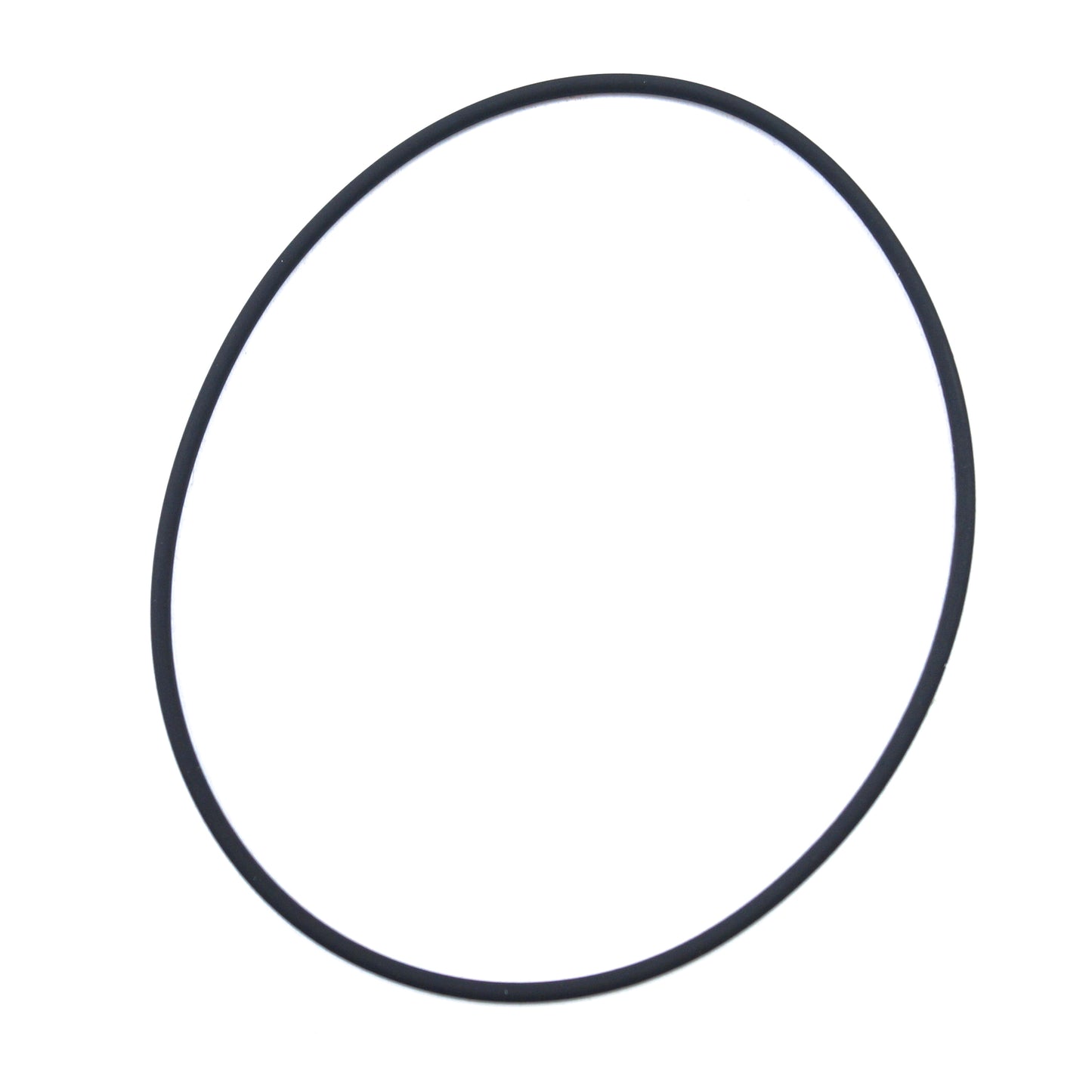

CYLINDER HEAD HASKET KTM EXC/SX/XC 91-11, ATHENA M752008300094 ROTAX FORMULA

ATHENA Cylinder Head Gasket M752008300094

Description

The head gasket is a complex and crucial technological component. To meet the ongoing needs of the market, Athena conducts meticulous checks on its head gaskets, both during the design phase and during bench tests. Athena head gasket can be produced using different technologies, such as metal/elastomer combinations or multilayer with Athena steel and coating materials. Choosing a Top-quality gasket is the first step towards a reliable engine.

Depending on the type, it is submitted to:

1.1. High precision cutting

Thanks to latest generation lasers, it is possible to obtain a high degree of precision and purity, completely eliminating production burrs. These can cause various elements (oil, water, compression gas) to infiltrate compromising engine operations.

2.2. Alignment of reliefs

This solution increases the elasticity of the gasket during operation, guaranteeing excellent grip over time, even in extreme conditions. On the contrary, a misalignment of the reeds would cause an immediate flattening of the gasket, eliminating the function of elastic memory and the consequent loss of compression.

Technical features

• Internal Diameter (mm) 83.00
• Material Viton®
• Net Weight (Kg) 0.00
• Wire Diameter (mm) 2.00

Partner OEM code

• KAWASAKI 920551331
• KAWASAKI 92055081
• K.T.M. 0770840021
• K.T.M. 0770820020
• ROTAX 850540
• ROTAX 293350026
• SUZUKI 1741840F00
• YAMAHA 9321084724

Vehicle compatibility

• KTM EGS 360 cc 1995
• KTM EGS 360 cc 1997
• KTM EGS 380 cc 1998
• KTM EXC 250 cc 1999/2003
• KTM EXC 300 cc 1999/2003
• KTM EXC 360 cc 1995
• KTM EXC 360 cc 1997
• KTM EXC 380 cc 1998/2003
• KTM SX 105 cc 2004/2011
• KTM SX 300 cc 1999/2003
• KTM SX 360 cc 1995/1997
• KTM SX 380 cc 1998/2003
• KTM XC 105 cc 2004/2011
• KTM XC 85 cc 2003/2006
• KTM XC 85 cc 2008/2011
• ROTAX FORMULA GRAN TOURING 582 cc 1993/1994
• ROTAX FORMULA GT / XTC 670 cc 1993/1996
• ROTAX FORMULA MACH 1 583 cc 1989
• ROTAX FORMULA MACH1 / XTC 640 cc 1991
• ROTAX FORMULA PLUS EXTC / XTCR 582 cc 1992
• ROTAX FORMULA PLUS X / E / XTC / EFI 582 cc 1993
• ROTAX FORMULA Z / STX / LT / MXZ 0 cc 1996/1998
• ROTAX SUMMIT 583 cc 1996/1998
• ROTAX TUNDRA II / LT 0 cc 1993/1998
• SEA DOO SEA DOO ROTAX 580 cc 1988/1996
• YAMAHA YZ 85 cc 2002/2022
• YAMAHA YZ LC 80 cc 1993/2001

Part No. 28-5763.ATH.EXT (oro2u.com)
