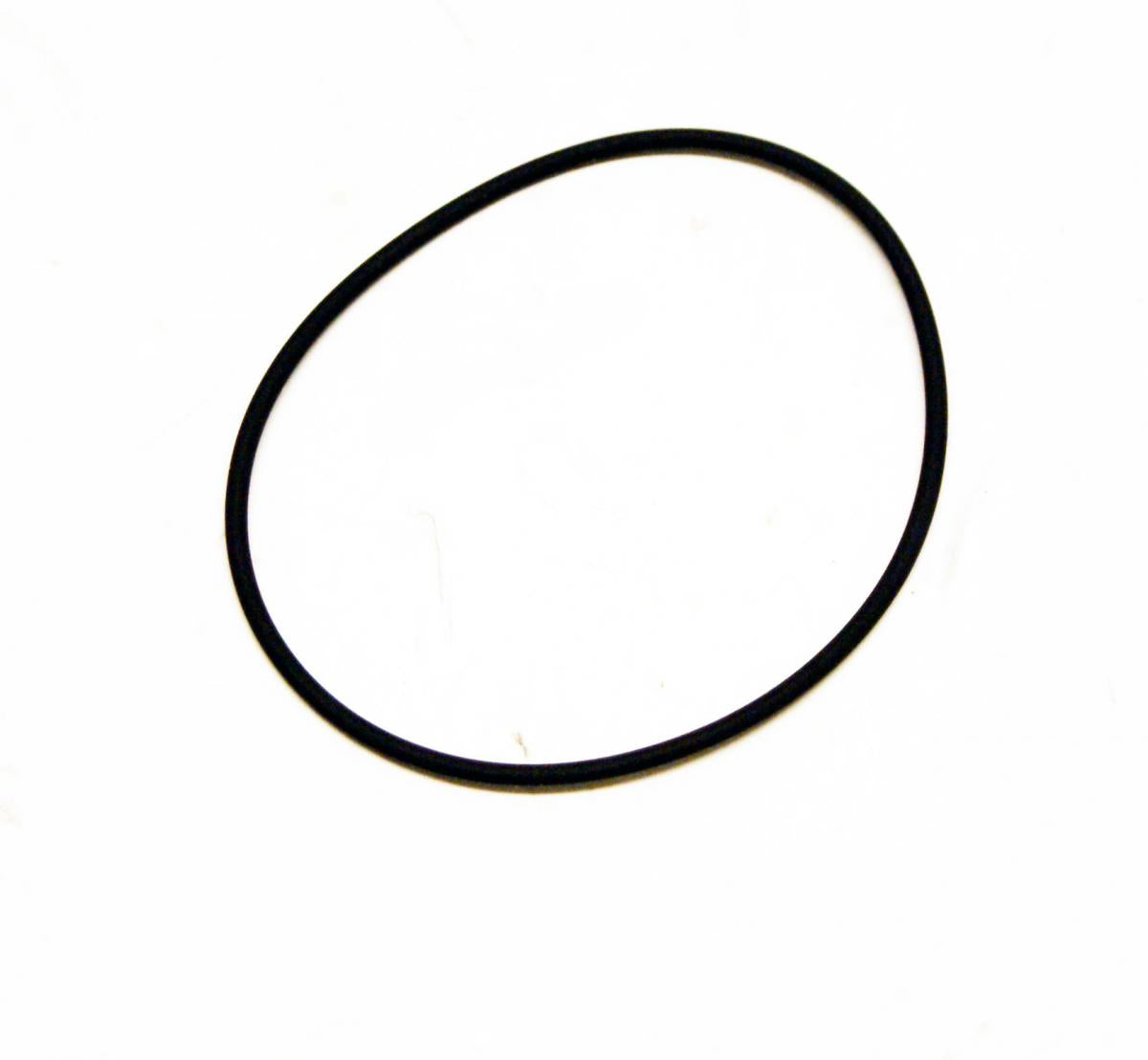

CYLINDER HEAD GASKET KTM 125 16-23, ATHENA M752006000094 HUSQVARNA GAS GAS

ATHENA Cylinder Head Gasket - M752006000094

Description

The head gasket is a complex and crucial technological component. To meet the ongoing needs of the market, Athena conducts meticulous checks on its head gaskets, both during the design phase and during bench tests. Athena head gasket can be produced using different technologies, such as metal/elastomer combinations or multilayer with Athena steel and coating materials. Choosing a Top-quality gasket is the first step towards a reliable engine.

Depending on the type, it is submitted to:

1.1. High precision cutting

Thanks to latest generation lasers, it is possible to obtain a high degree of precision and purity, completely eliminating production burrs. These can cause various elements (oil, water, compression gas) to infiltrate compromising engine operations.

2.2. Alignment of reliefs

This solution increases the elasticity of the gasket during operation, guaranteeing excellent grip over time, even in extreme conditions. On the contrary, a misalignment of the reeds would cause an immediate flattening of the gasket, eliminating the function of elastic memory and the consequent loss of compression.

Technical features

• Internal Diameter (mm) 60.00
• Material Viton®
• Net Weight (Kg) 0.00
• Wire Diameter (mm) 2.00

Partner OEM code

• APRILIA 25190
• K.T.M. 50230036500
• K.T.M. 0770600200

Vehicle compatibility

• BETA RR 2T 125cc 2019/2022
• BETA RR Racing 2T 125 cc 2019/2022
• GAS GAS MC 125 cc 2021/2023
• HUSQVARNA TC Ktm engine 125 cc 2016/2023
• HUSQVARNA TX Ktm engine 125 cc 2017/2019
• KTM SX 125 cc 2016/2023
• KTM XC 125 cc 2021/2023
• KTM XC-W 125 cc 2017/2019

Part No. 28-5913.ATH.INT (oro2u.com)
