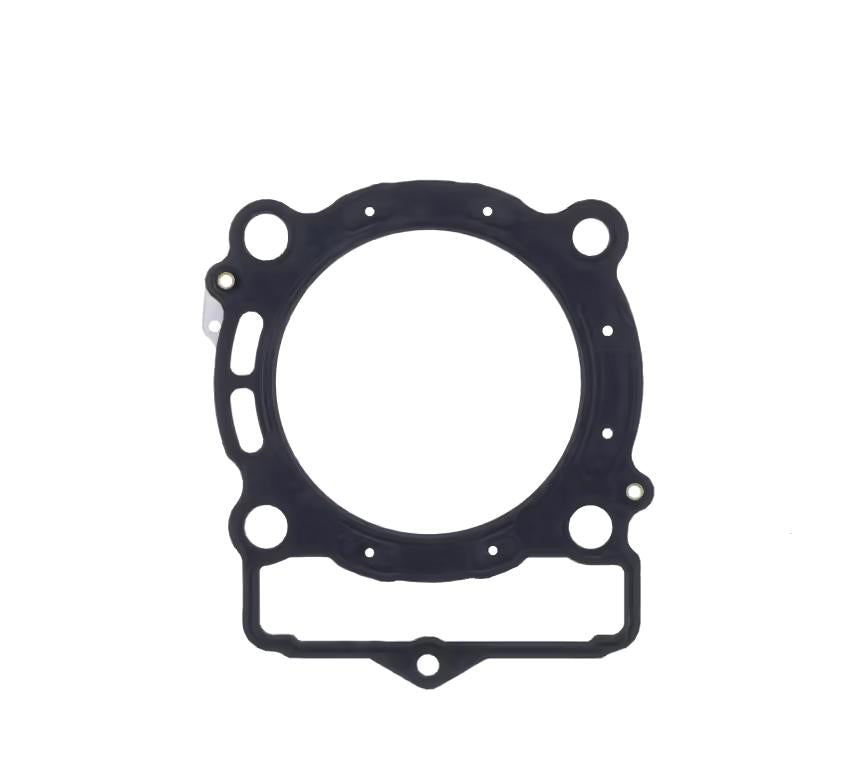

CYLINDER HEAD GAKSET KTM 350 13-18, ATHENA S410270001041 HUSQVARNA

ATHENA Cylinder Head Gasket thickness same as OE - S410270001041

Description

The head gasket is a complex and crucial technological component. To meet the ongoing needs of the market, Athena conducts meticulous checks on its head gaskets, both during the design phase and during bench tests. Athena head gasket can be produced using different technologies, such as metal/elastomer combinations or multilayer with Athena steel and coating materials. Choosing a Top-quality gasket is the first step towards a reliable engine.

Depending on the type, it is submitted to:

1.1. High precision cutting

Thanks to latest generation lasers, it is possible to obtain a high degree of precision and purity, completely eliminating production burrs. These can cause various elements (oil, water, compression gas) to infiltrate compromising engine operations.

2.2. Alignment of reliefs

This solution increases the elasticity of the gasket during operation, guaranteeing excellent grip over time, even in extreme conditions. On the contrary, a misalignment of the reeds would cause an immediate flattening of the gasket, eliminating the function of elastic memory and the consequent loss of compression.

Technical features

• Net Weight (Kg) 0.05

Partner OEM code

• K.T.M. 79230036086
• K.T.M. 77830036085

Vehicle compatibility

• HUSQVARNA FC Ktm engine 350 cc 2014/2018
• HUSQVARNA FE Ktm engine 350 cc 2017/2019
• HUSQVARNA FX 350 cc 2017/2018
• KTM EXC-F 350 cc 2014/2016
• KTM SX-F 350 cc 2013/2018
• KTM XC-F 350 cc 2013/2014
• KTM XC-F 350 cc 2016/2018
• KTM XCF-W 350 cc 2014/2015

Part No. 28-5769.ATH (oro2u.com)
