CYLINDER FULL KIT 82MM KTM SX-F/HUSKY FC 250 13-15, ATHENA P400270100015 276CC BIG BORE, (Piston included)

ATHENA Big Bore Cylinder Kit Ø 82 mm, 276 cc - P400270100015 (Includes Piston)

Description

Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years, to improve their production and performance. All the cylinders are entirely engineered in Italy by Athena’s R&D Department which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.

Athena’s cylinder kits and its components are recognized worldwide for their performance, durability and reliability.

Athena’s Big Bore Cylinder Kits guarantees an increase in performance that can be observed along the power curve, keeping the reliability at the same level of the original components.

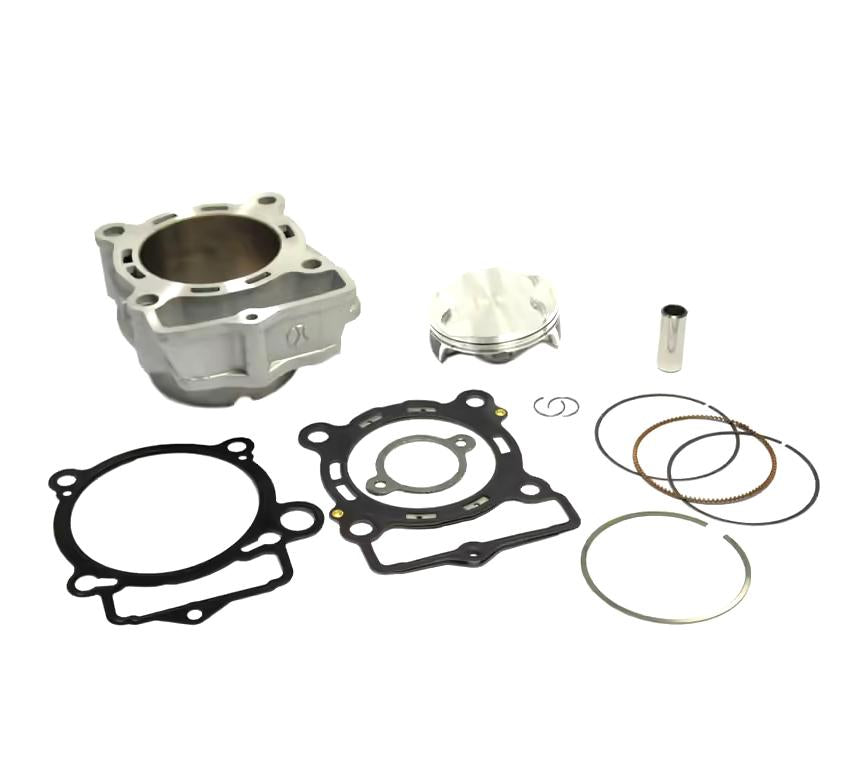

The kit includes the high-quality aluminum cylinder with increased bore, the complete piston with the piston pin and rings, and all the necessary gaskets.

All the components of the kit have been developed to withstand the highest temperatures, pressures and stresses and have been validated by Athena technicians with severe bench and road tests.

This cylinder kit can be installed without making any changes to the engine crankcase.

CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.

Technical features

• Bore Diameter (mm) 82.00
• Compression Ratio 13.4:1
• Displacement (cc) 276
• Net Weight (Kg) 1.80

Partner Cross Reference code and Optional Parts

• Big Bore Cylinder Kit 82mm / 276cc P400270100015
• Big Bore Piston Kit 82mm S4F08000005A
• T.E. Gasket Kit 82mm P400270160067
• Replacement Ring Set 82mm S41316278

Vehicle compatibility

• HUSQVARNA FC Ktm engine 250 cc 2014/2015
• KTM SX-F 250 cc 2013/2015

Part No. 56-K151.82.K.W (oro2u.com)
