CONNECTING ROD YZ250F 2014-2020, YAMAHA, Psychic NAMURA MX-09049, 1SM116510100
CONNECTING ROD YZ250F 2014-2020, YAMAHA, Psychic NAMURA MX-09049, 1SM116510100
CONNECTING ROD YZ250F 14-20, YAMAHA, Psychic NAMURA MX-09049, 1SM116510100
YAMAHA
YZF250 YZ250F 2014-2018,
WRF250 WR250F 2015-2018,
WRF250X WR250FX 2015-2018,
CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09049
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

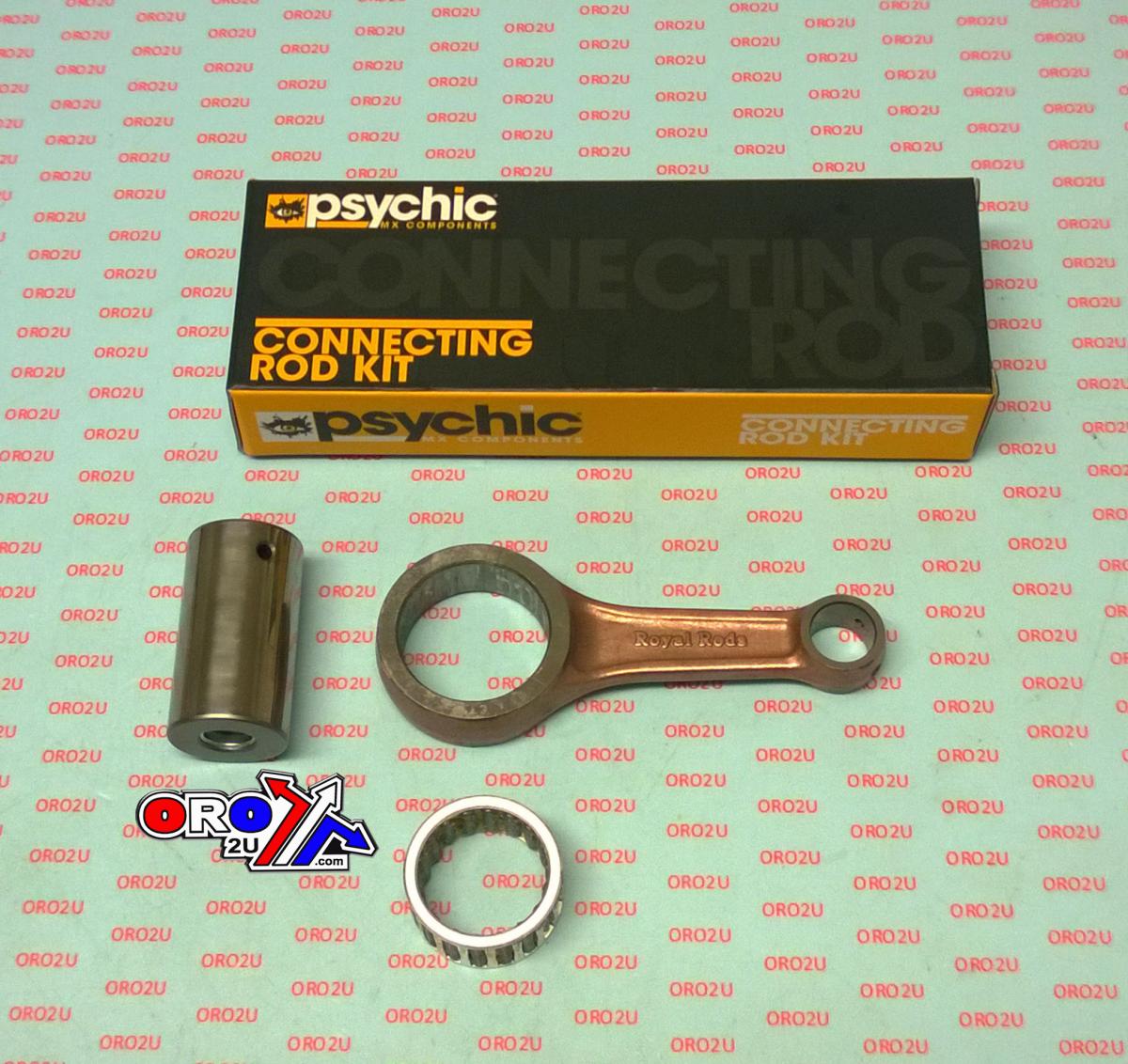

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,8620,
SIZE |
MM |
Centre 2 Centre |
92.20 |
Small End Bearing |
None |
Small End Bore Ø |
16 |
Small End Width |
15 |
Big End Bearing |
30x38x17.7 |
Big End Bore Ø |
38 |
Big End Width |
18 |
Big End Pin Ø |
30 |
Big End Pin Length |
54.80 |
Washer Thickness |
None |
