CONNECTING ROD YZ250F 14-18, HOT RODS 8717 YAMAHA YZF250

CONNECTING ROD YZ250F 14-18, HOT RODS 8717 YAMAHA YZF250

£163.75 GBP
£163.75 GBP
Sale Sold out
Taxes included.

CONNECTING ROD YZ250F 14-18, HOT RODS 8717 YAMAHA YZF250

Yamaha WR 250 F 2015-2018,
Yamaha YZ 250 F 2014-2018,
Yamaha YZ 250 FX 2015-2019.

Hot Rods Connecting Rod Kit - 8706
  • Heavy-duty OE replacement connecting rods
  • Certified 8620 AISI steel provides superior strength
  • Uniquely designed big end uses strategically located side scalloping vent slots to minimize high rpm bearing race distortion
  • Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
  • Hot Rods uses the latest in caged needle roller bearing designs for high rpm longevity
  • Thrust washers are manufactured from bronze phosphor and are silver coated

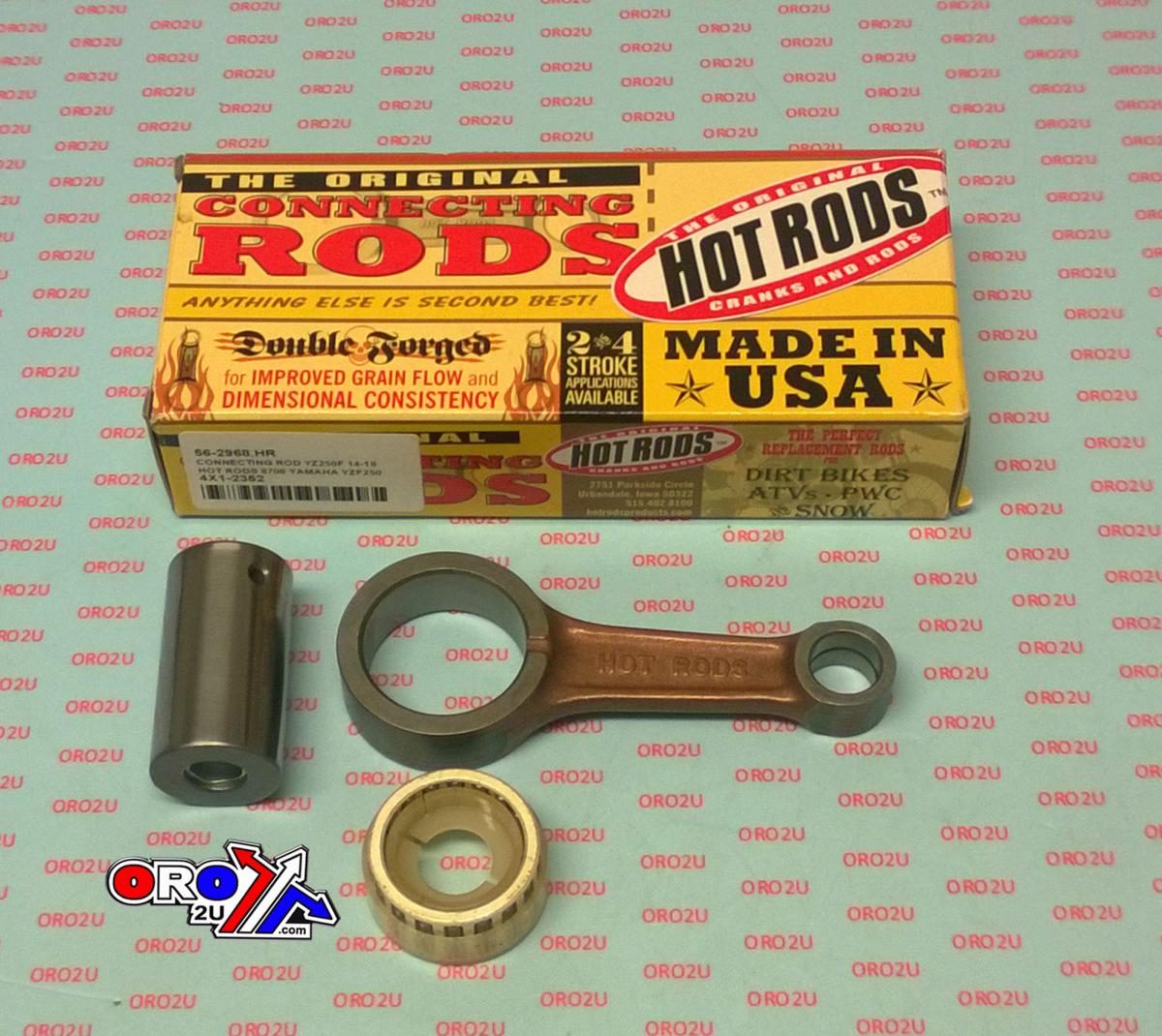

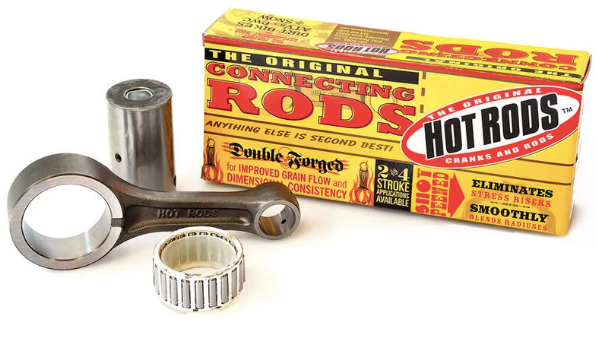

  • Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers
  • Compatible with Hot Rods and OE crankshafts
  • Made in the U.S.A.
Included Items:

(1) Connecting rod
(1) Connecting rod bearing
(1) Crankshaft pin

Technical Specifications:
Big End Bearing (mm): 30 x 38 x 17.8
Big End Bore (mm): 38.00
Big End Width (mm): 17.95
Center To Center (mm): 92.50
Pin Diameter (mm): 30.00
Pin Length (mm): 54.80
Small End Bearing (mm): N/A
Small End Bore (mm): 16.00
Small End Width (mm): 15.05
Washer Thickness (mm): N/A
