CONNECTING ROD TS185 SUZUKI

SUZUKI
TS185 ALL.

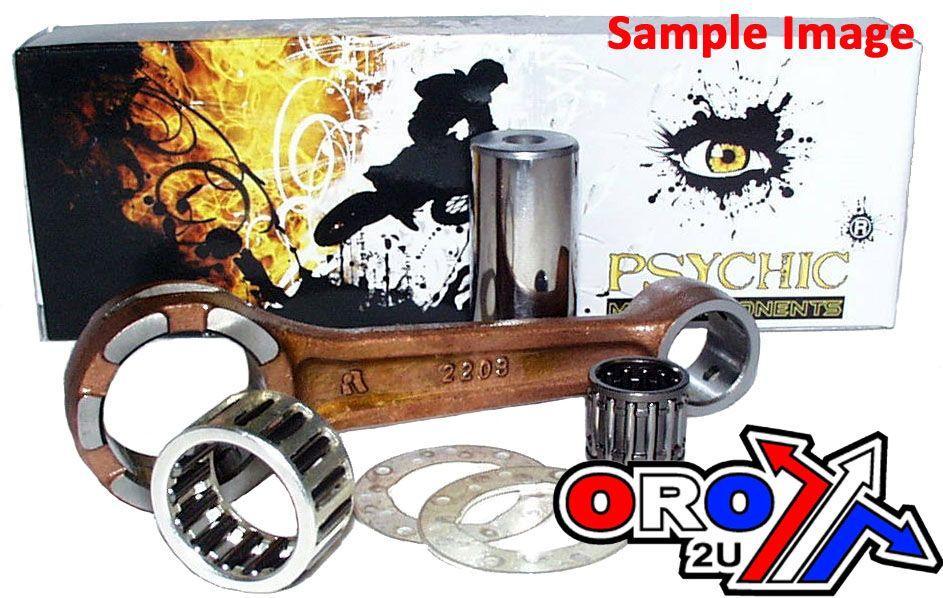

Connecting Conrod rod rebuild kit. PSYCHIC MC-09462

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

OverAll Length 145mm

Part No. 56-895.DR (oro2u.com)

Cross reference numbers ONLY.
PROX 03.3018, CRK054, 0637165,
SMALL END BEARING16X21X19.6BR 09263-16015
CONECTING ROD 12161-41500
WASHER 09160-22010
PIN, CRANK 12211-29001
BIG END BEARING RN 22X28X16 09263-22032
