Hot Rods

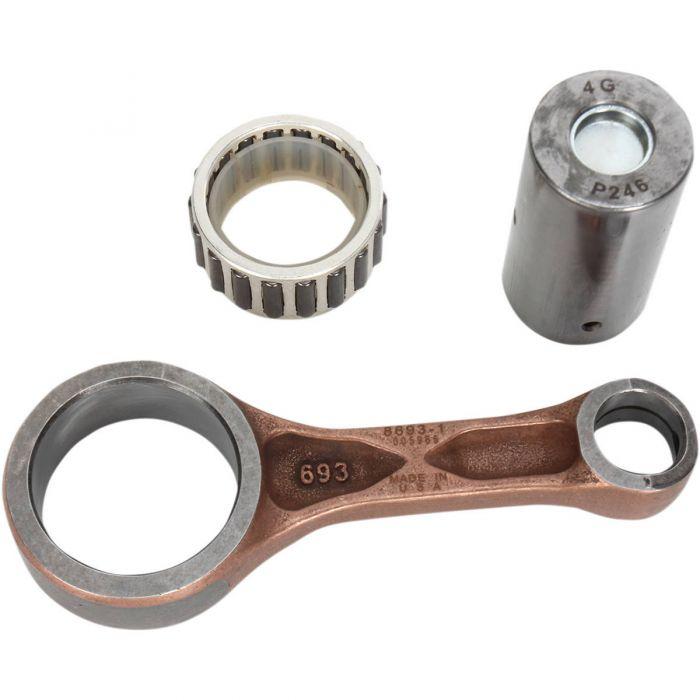

CONNECTING ROD SX-F350 KTM, HOT RODS 8693

CONNECTING ROD SX-F350 KTM, HOT RODS 8693

Regular price £190.55 GBP
Regular price Sale price £190.55 GBP
Sale Sold out
Taxes included.
 More payment options

High-quality connecting rod kit designed for KTM and Husaberg models, including KTM 350 EXC-F, SX-F, XC-F, and XCF-W bikes as well as Husaberg equivalents. Manufactured from durable ASTM 4115 material and case-hardened for superior strength, this kit is engineered to withstand high-performance demands while minimizing bearing race distortion at high RPMs.

Features:

  • Constructed from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc.
  • Double-forged rods for improved grain flow and dimensional consistency.
  • Shot-peened and double-honed for exceptional strength under heavy loads.
  • Strategically designed with side scalloping and vent slots to reduce high RPM distortion.
  • Double-drilled small ends for enhanced lubrication and cooling.
  • Silver-coated thrust washers and crank pin bearings for added lubricity.
  • Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers.

Technical Specifications:

  • Big End Bore: 41.00 mm
  • Center to Center: 102.00 mm
  • Pin Diameter: 32.00 mm
  • Pin Length: 60.00 mm
  • Small End Bore: 18.00 mm

Included Items:

  • (1) Connecting rod
  • (1) Crankshaft pin
  • (1) Connecting rod bearing

Cross-Reference OEM Part Numbers:

  • KTM: 77230015044
  • KTM: 77230115044
  • HUSABERG: 77230115044

Vehicle Fitments:

KTM:

  • 2012–2016 KTM 350 EXC-F
  • 2011–2012 KTM 350 SX-F
  • 2011–2012 KTM 350 XC-F
  • 2012–2013 KTM 350 XCF-W

HUSABERG:

  • Equivalent models to above KTM fitments.

Part Number: 56-2984.HR
