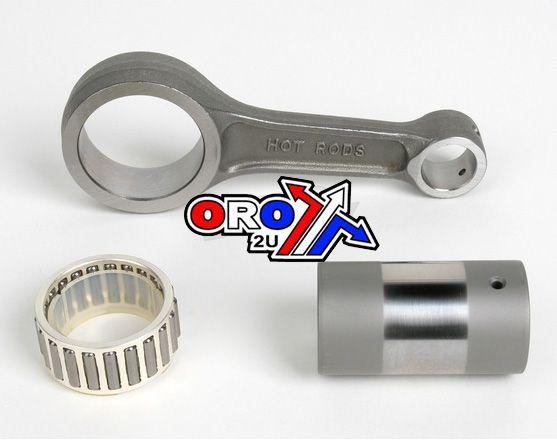

CONNECTING ROD RMZ450, HOTRODS 8647 RM-Z450

High-quality heavy-duty connecting rod kit, designed for the Suzuki RM-Z450. Manufactured to withstand demanding conditions, this kit ensures durability, optimal performance, and superior strength.

Features:

• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for maximum reliability.
• Advanced design with side scalloping and vent slots to minimize high RPM bearing race distortion.
• Double-forged rods for improved grain flow and consistent dimensions.
• Shot-peened and double-honed for enhanced strength under heavy loads.
• Double-drilled small ends for superior lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for reduced friction and increased lubricity.
• Includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a complete rebuild.

Technical Specifications:

• Big End Bearing (mm): [Data missing]
• Big End Bore (mm): 42.00
• Big End Width (mm): [Data missing]
• Center to Center (mm): 106.10
• Pin Diameter (mm): 34.00
• Pin Length (mm): 60.80
• Small End Bearing (mm): [Data missing]
• Small End Bore (mm): 19.00
• Small End Width (mm): [Data missing]
• Washer Thickness (mm): [Data missing]

Cross-Reference OEM Part Numbers:

• ATHENA P40321030
• 12210-10H10 / 12210-10H11
• 09263-30060-0B0
• 12161-49H00-0B0
• HR008661
• HOTRODS 8661
• PROX 03.3405
• PSYCHIC MX-09016
• 12161-35G00-0B0 / 12161-35G01-0B0
• WOSSNER P4012
• WISECO
• HOTRODS 8647

Vehicle Fitment:

Suzuki:

• RM-Z450 (2005–2016)

Part Number: 56-136.HR
