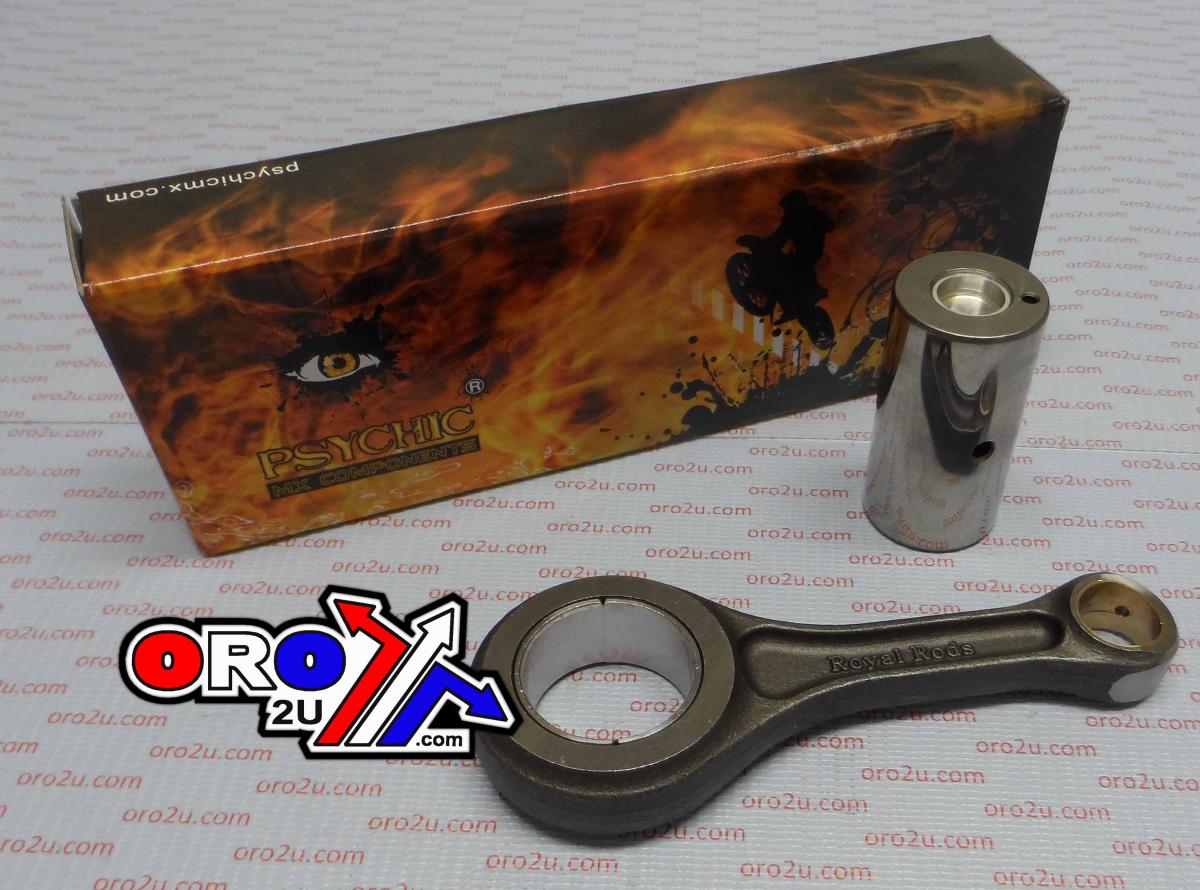

CONNECTING ROD KTM SX-F250, PSYCHIC MX-09022, 77730015144

Connecting rod rebuild kit for KTM, Husqvarna, and Husaberg models, designed as a heavy-duty OE replacement. Manufactured using certified chrome alloy steel for exceptional strength and durability, this kit is compatible with both aftermarket and OE crankshafts. It includes all required components for a complete assembly.

Features

• Heavy-duty connecting rod engineered as an OE replacement.
• Constructed from certified chrome alloy steel for superior strength.
• Crankpins are made from hot-rolled ASTM steel and case-hardened for durability.
• High-rpm longevity ensured by advanced caged needle roller bearing designs.
• Bronze phosphor thrust washers with a silver coating for enhanced performance.
• Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers if required.
• Fully compatible with aftermarket and OE crankshafts.

Specifications

• Centre-to-Centre: 98 mm
• Small End Bearing: None
• Small End Bore Ø: 16 mm
• Small End Width: 15 mm
• Big End Bearing: 30 shell
• Big End Bore Ø: Not provided
• Big End Width: 18 mm
• Big End Pin Ø: 30 mm
• Big End Pin Length: 56 mm
• Washer Thickness: None

Cross Reference OEM Part Numbers

• Athena P40321043
• 77730015144
• Psychic MX-09022
• Hotrods 8701
• ProX 03.6333
• Wossner P4059
• 777.30.015.144

Vehicle Fitments

KTM

• 2014–2016 KTM 250 EXC-F
• 2015 KTM 250 EXC-F Factory Edition
• 2014–2016 KTM 250 EXC-F Six Days
• 2013–2015 KTM 250 SX-F
• 2013–2015 KTM 250 XC-F
• 2013–2015 KTM 350 SX-F

Husqvarna

• 2014–2016 Husqvarna FE 250
• 2014–2015 Husqvarna FC 250

Husaberg

• 2014 Husaberg FE250

Part Number: 56-932.DR
