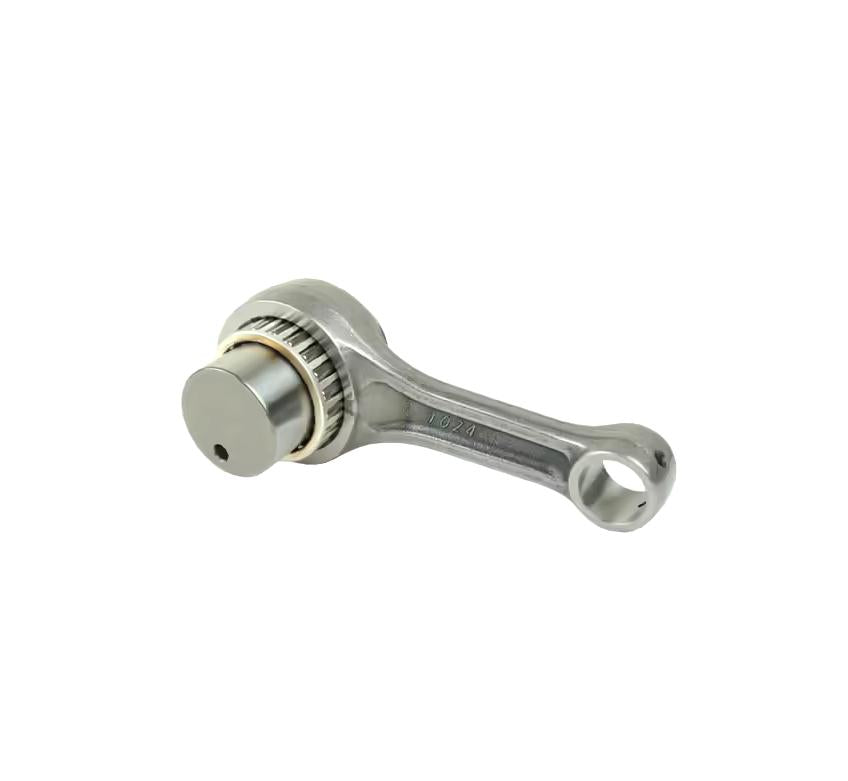

CONNECTING ROD KIT YAMAHA WR/YZ 450 10-20, ATHENA P40321024

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 42.00
• Big End Pin Diameter (mm) 34.00
• Big End Width (mm) 21.00
• Center To Center (mm) 103.00
• Net Weight (Kg) 0.70
• Piston Pin Diameter (mm) 18.00
• Small End Width (mm) 18.00

Vehicle compatibility

• YAMAHA WR F 450 cc 2016/2020
• YAMAHA YZ F 450 cc 2010/2019
• YAMAHA YZ FX 450 cc 2016/2020

Part No. 56-857.ATH (phoenixmotos.com)
