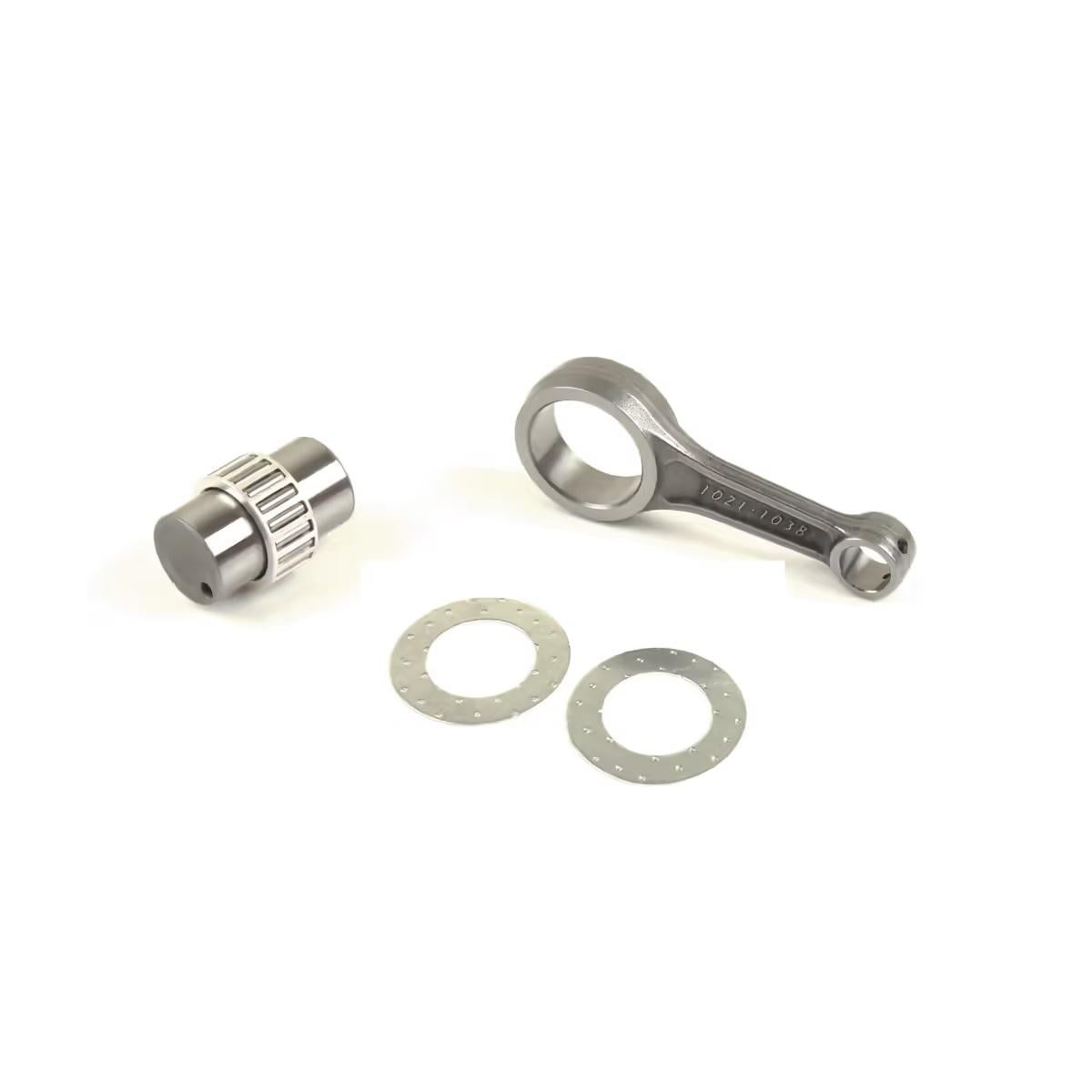

CONNECTING ROD KIT YAMAHA WR/YZ 250 14-25, ATHENA P40321021

ATHENA Connecting Rod Offroad Kit - P40321021

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 38.00
• Big End Pin Diameter (mm) 30.00
• Big End Width (mm) 18.00
• Center To Center (mm) 92.50
• Net Weight (Kg) 0.54
• Piston Pin Diameter (mm) 16.00
• Small End Width (mm) 15.00

Partner Cross Reference code

• 1SM116510100
• 1SM-11651-01-00
• HOTRODS 8706
• PROX 03.2414
• WOSSNER P4063
• 1SM-11651-00-00

Vehicle compatibility

• YAMAHA WR F 250 cc 2015/2025
• YAMAHA YZ F 250 cc 2014/2025
• YAMAHA YZ FX 250 cc 2015/2025

Part No. 56-2968.ATH (oro2u.com)
