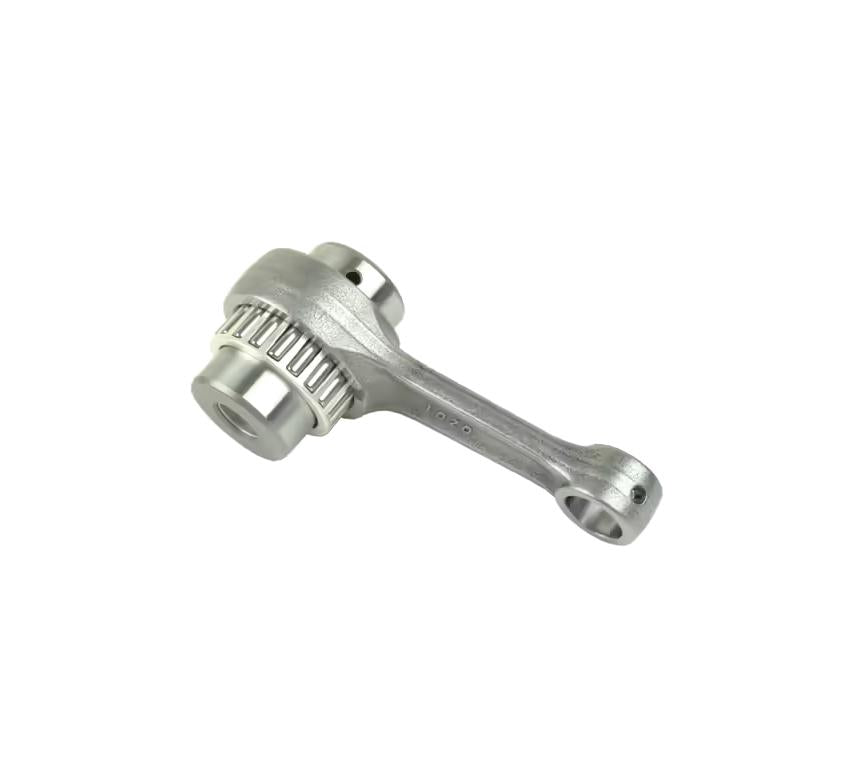

CONNECTING ROD KIT YAMAHA WR/YZ 250 03-13, ATHENA P40321020 GAS GAS EC 250 13-15

ATHENA Connecting Rod Offroad Kit - P40321020

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 40.00
• Big End Pin Diameter (mm) 32.00
• Big End Width (mm) 18.00
• Center To Center (mm) 93.50
• Net Weight (Kg) 0.55
• Piston Pin Diameter (mm) 16.00
• Small End Width (mm) 15.00

Partner Cross Reference code

• PSYCHIC MX-09085
• RY-2211
• 5NUL
• HOTROD 8619
• WISECO WPR196
• WOSSNER P4005
• 17D-11651-90-00

Vehicle compatibility

• GAS GAS EC 4T 300 cc 2013/2015
• GAS GAS EC F 250 cc 2010/2015
• YAMAHA WR F 250 cc 2003/2013
• YAMAHA YZ F 250 cc 2003/2013

Part No. 56-910.ATH (oro2u.com)
