Psychic

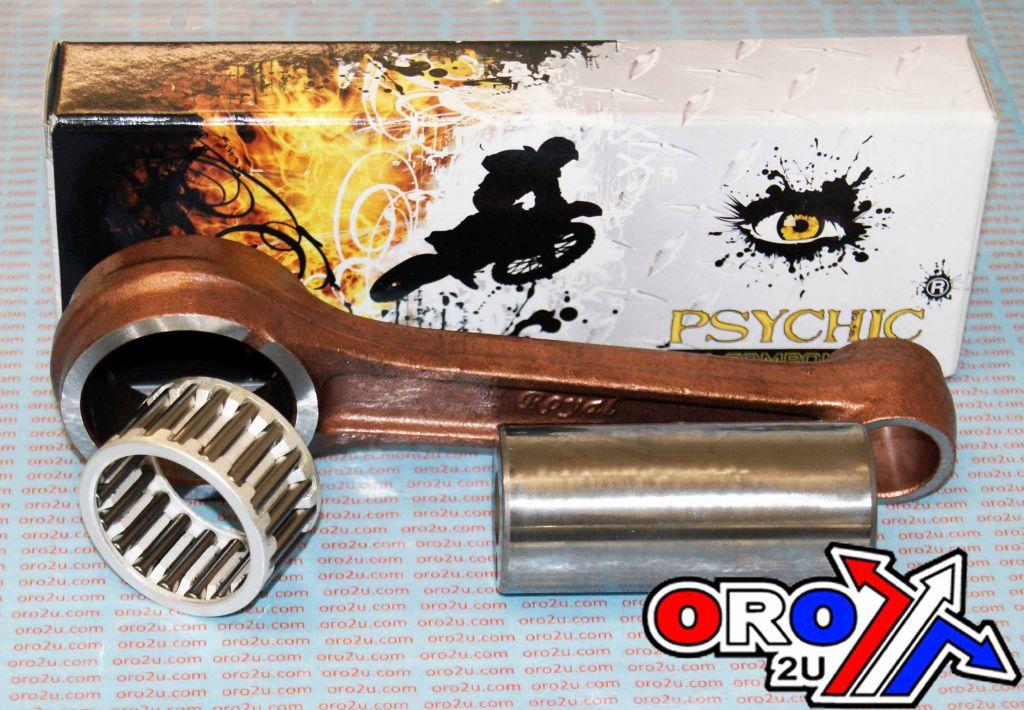

CONNECTING ROD KIT XT500, PSYCHIC MX-09044 YAMAHA

CONNECTING ROD KIT XT500, PSYCHIC MX-09044 YAMAHA

Regular price £126.29 GBP
Regular price Sale price £126.29 GBP
Sale Sold out
Taxes included.

YAMAHA
XT500 / SR500,
SRX400,
XT400,

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09044

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

SIZE

MM

Centre 2 Centre

145

Small End Bearing

None

Small End Bore Ø

20

Small End Width

24

Big End Bearing

34x42x23.8

Big End Bore Ø

42

Big End Width

24

Big End Pin Ø

34

Big End Pin Length

73.80

Washer Thickness

None

Part No. 56-2912.DR (oro2u.com)

Cross reference numbers ONLY.
PROX 03-2576,
Rod, Connecting 583-11651-00-00 ,
Bearing, Cylindrical 93310-635A5-00,
Pin, Crank 583-11681-00-00 / 583-11681-01-00,
[Fits into Crankshaft Assembly 583-11400-00-00 / 583-11400-09-00]
