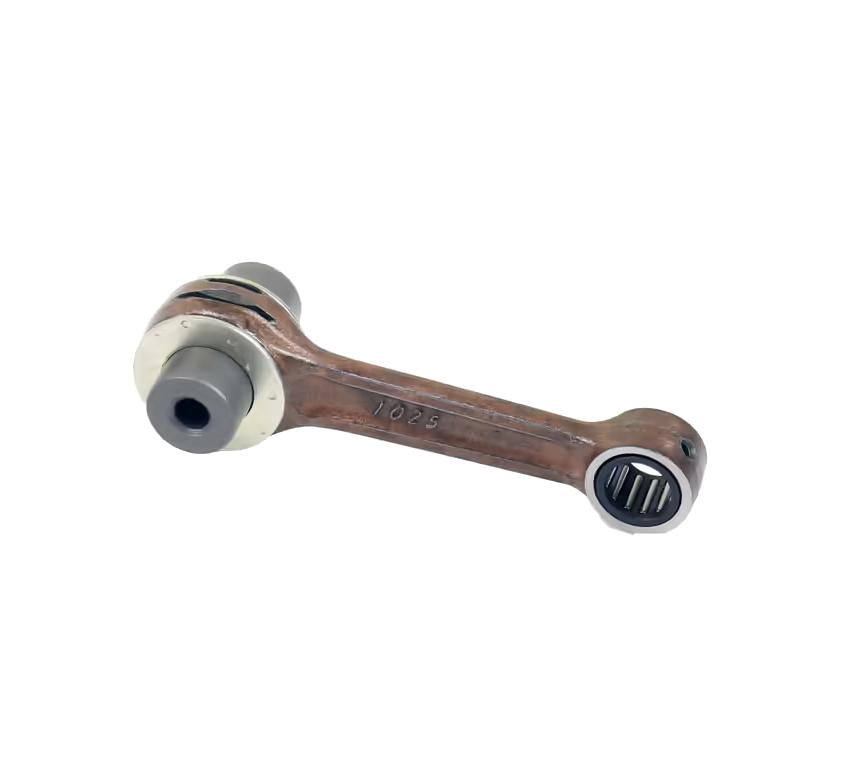

CONNECTING ROD KIT SUZUKI RM 85 02-23, ATHENA P40321025

ATHENA Connecting Rod Offroad Kit - P40321025

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 26.00
• Big End Pin Diameter (mm) 20.00
• Big End Width (mm) 14.00
• Center To Center (mm) 93.50
• Net Weight (Kg) 0.25
• Piston Pin Diameter (mm) 18.00
• Small End Width (mm) 14.00
• Washer Thickness (mm) 1.50

Vehicle compatibility

• SUZUKI RM 85 cc 2002/2008
• SUZUKI RM 85 cc 2010/2023

Part No. 56-108.ATH (oro2u.com)
