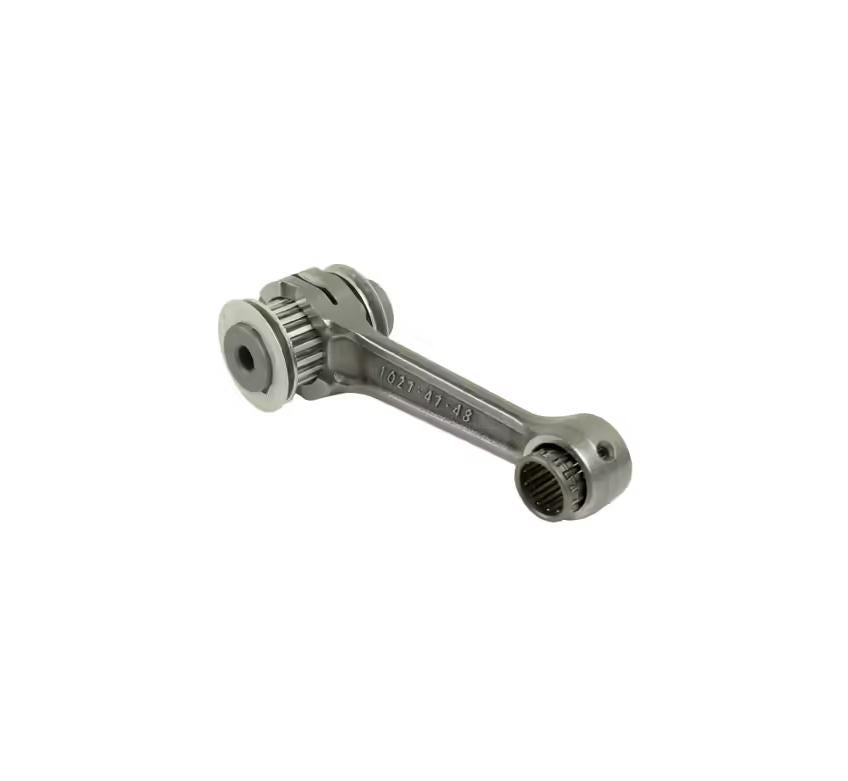

CONNECTING ROD KIT SUZUKI RM 125 04-11, ATHENA P40321027

ATHENA Connecting Rod Offroad Kit - P40321027

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 28.00
• Big End Pin Diameter (mm) 22.00
• Big End Width (mm) 16.00
• Center To Center (mm) 110.00
• Net Weight (Kg) 0.37
• Piston Pin Diameter (mm) 19.00
• Small End Width (mm) 16.00
• Washer Thickness (mm) 1.50

Partner Cross Reference code

• PSYCHIC MX-09059-1
• PROX 03.3224
• WISECO WPR195
• WOSSNER P2016
• HOT RODS 8615
• 12161-36E11
• 12161-36E12
• 12161-36F20
• 12161-36F21

Vehicle compatibility

• SUZUKI RM 125 cc 2004/2011

Part No. 56-925.ATH (oro2u.com)
