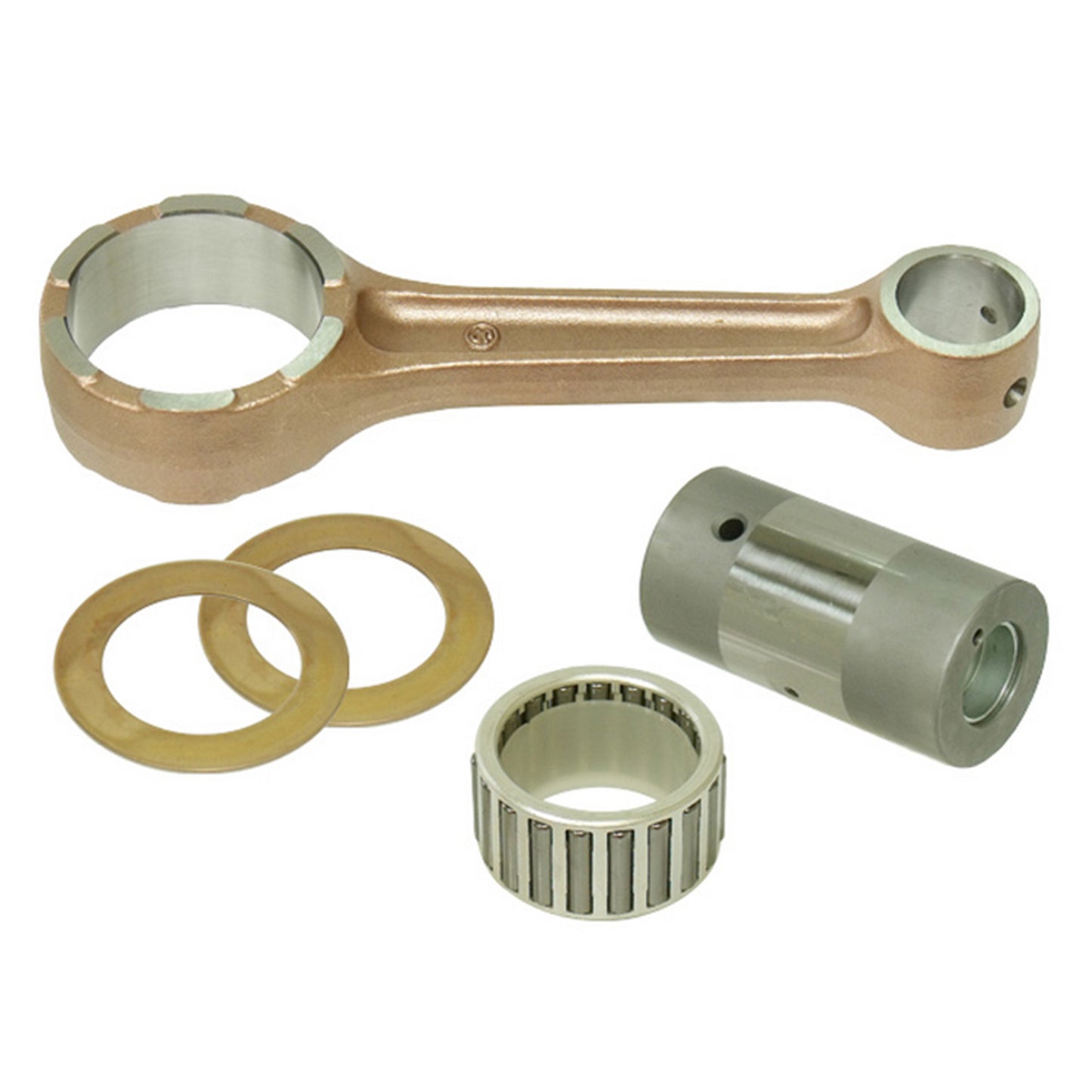

CONNECTING ROD KIT SUZUKI LT-A500F BRONCO AT-09248

CONNECTING ROD REBUILD KIT BRONCO AT-09248

SUZUKI

• 2000-01 LT-A500F QUADMASTER
• 2002-07 LT-A500F VINSON 4WD
• 1998-02 LT-F500F QUADRUNNER
• 2003-07 LT-F500F VINSON 4WD

ARCTIC CAT

• 400 2X4 2001-2002
• 400 4X4 MANUAL 2001-2002
• 500 4X4/FIS MANUAL 1998-2009
• 500 4X4/FIS/TBX/TRV AUTO 2000-2009

• Heavy-duty OE replacement connecting rods.
• Certified Chrome alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods use the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing, and thrust washers if needed.
• Fully compatible with aftermarket and OE crankshafts.
• Material: SNCM220

SIZE (MM)

• Centre to Centre: 139.80
• Small End Bearing: None
• Small End Bore Ø: 23
• Small End Width: 25
• Big End Bearing: 37x47x24.8
• Big End Bore Ø: 47
• Big End Width: 25
• Big End Pin Ø: 37
• Big End Pin Length: 70.00
• Washer Thickness: 37.4x55x1.0

Part No. 56-217.BR (oro2u.com)

Cross reference numbers ONLY:

• Vesrah VA-3009 VA3009
• 09160-37006
• 09263-37007
• 12161-32E00
• 12210-24B01-0A0
