CONNECTING ROD KIT NAMURA RX-40003 DT50 YZ50, 126-11651-00, 3R1-11651-01-00, MX-09021, RY-2001 YAMAHA
CONNECTING ROD KIT NAMURA RX-40003 DT50 YZ50, 126-11651-00, 3R1-11651-01-00, MX-09021, RY-2001 YAMAHA
Couldn't load pickup availability
YAMAHA
DT50 / DT80 / YZ50 / YZ80/ V50 / YB50 / LB80,
MP/MC 1964-65 YJ1 1964-65,
YJ2 1984 CV50L 1983-87,
CV80 (RIVA) 1973 GT1
CONNECTING CONROD ROD REBUILD KIT.
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

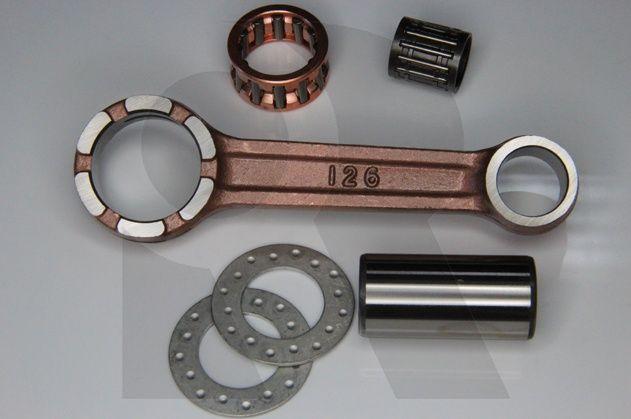

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220/420,
SIZE |
MM |
Centre 2 Centre |
84 |
Small End Bearing |
12x15x16.5 |
Small End Bore Ø |
22 |
Small End Width |
15.60 |
Big End Bearing |
18x24x11.6 |
Big End Bore Ø |
31 |
Big End Width |
11.60 |
Big End Pin Ø |
18 |
Big End Pin Length |
37 |
Washer Thickness |
18x31x1 |
Part No. 56-2940.DR (oro2u.com)
Cross reference numbers ONLY.
RY-2001/126, 126-11651-00-00, PROX 03.2002, 126-11651-00-00, 3R1-11651-01-00, RX-40003
