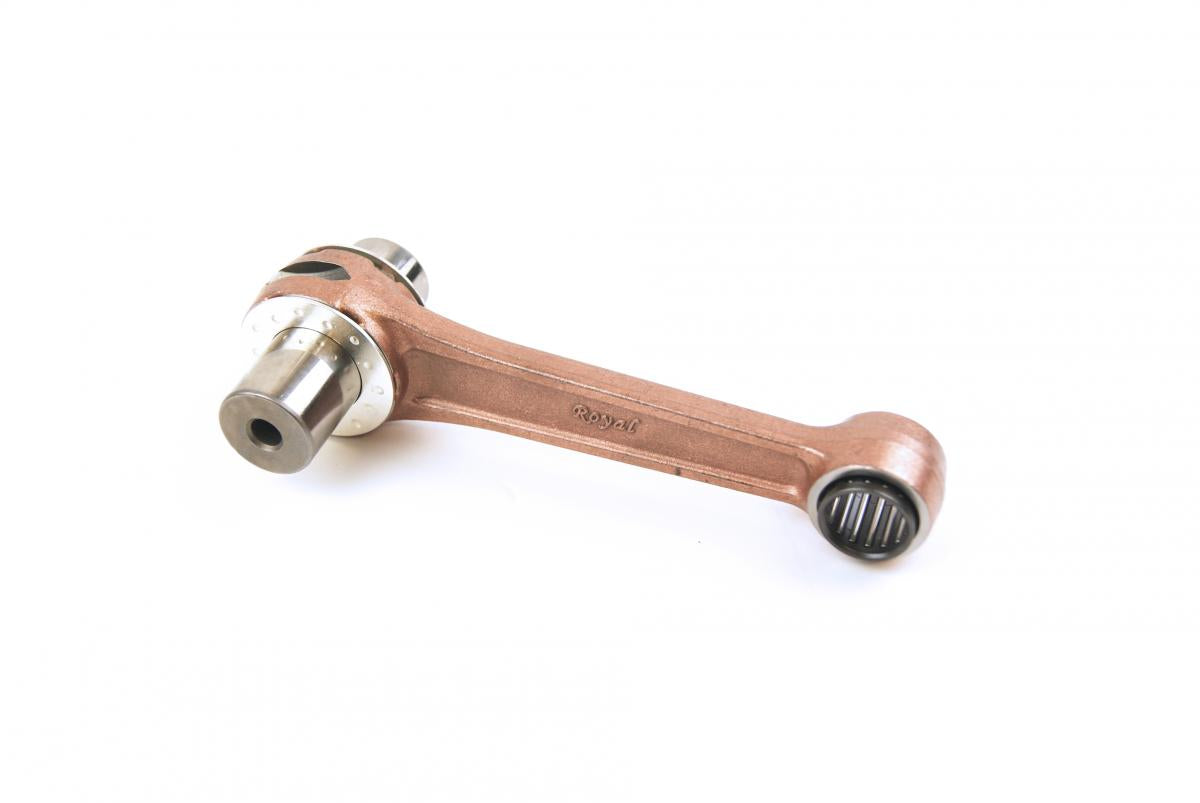

CONNECTING ROD KIT MAICO 490 83-ON, MX-09070 / RX-12002 137-18-25-20-20-67mm
CONNECTING ROD KIT MAICO 490 83-ON, MX-09070 / RX-12002 137-18-25-20-20-67mm
Couldn't load pickup availability
490 LATE MODEL 1983-ON,
CONNECTING CONROD ROD REBUILD KIT. NAMURA MX-09070
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 137 |
| Small End Bearing | 18x22x23.5 |
| Small End Bore Ø | 22 |
| Small End Width | 20 |
| Big End Bearing | 25x31x19.8 |
| Big End Bore Ø | 31 |
| Big End Width | 20 |
| Big End Pin Ø | 25 |
| Big End Pin Length | 67 |
| Washer Thickness | 25x42x1 |
Part No. 56-2930 (phoenixmotos.com)
Cross reference numbers ONLY.
RO-8201 / 149
