Wossner
CONNECTING ROD KIT KXF, RMZ, WOSSNER P4002 250 04-09, KXF250 RMZ250 RM-Z
CONNECTING ROD KIT KXF, RMZ, WOSSNER P4002 250 04-09, KXF250 RMZ250 RM-Z
Couldn't load pickup availability
KAWASAKI
KXF250 KX250F 2004-2009,
SUZUKI
RM-Z250 RMZ250 2004-2018,
CONNECTING, CONROD REBUILDING KIT WOSSNER P4002
- Made in Germany
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

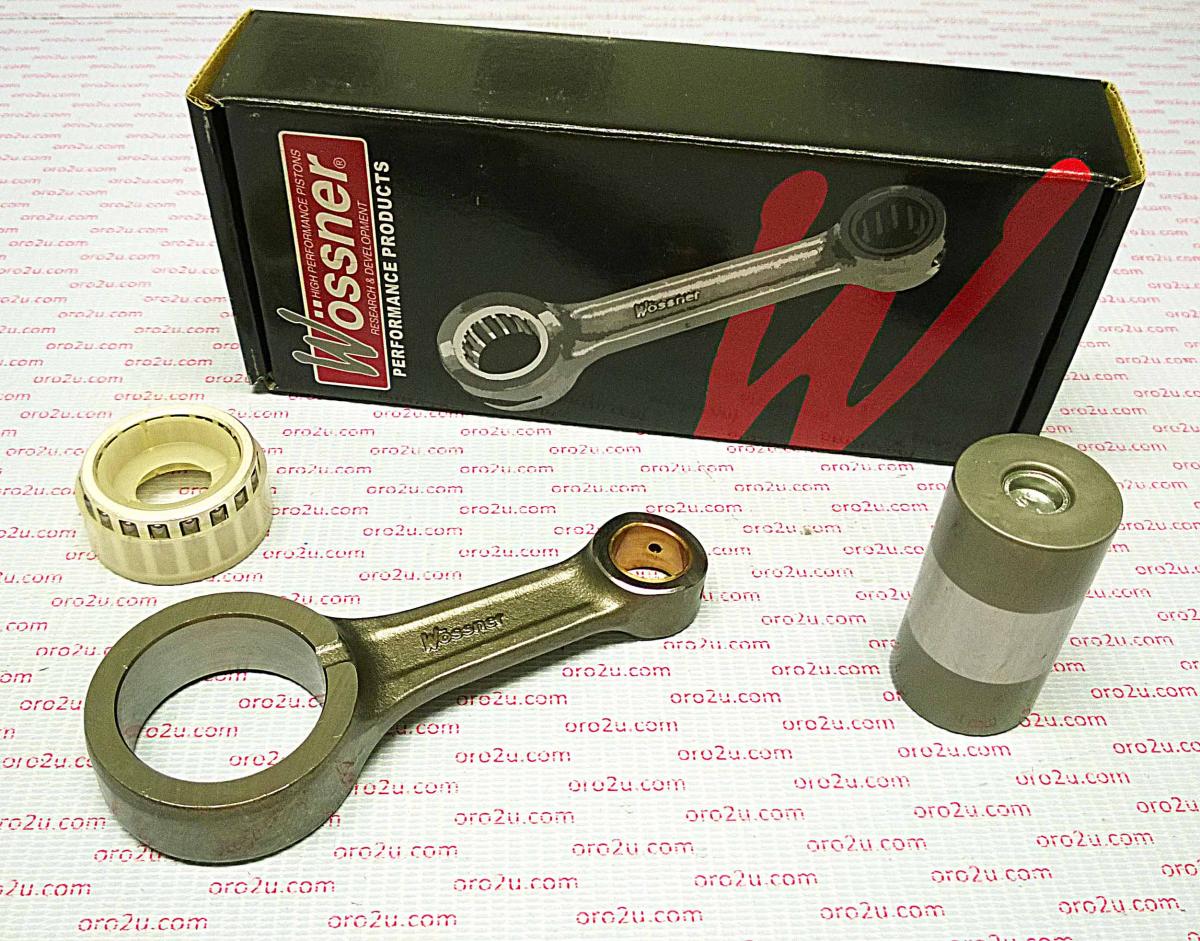

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
SIZE | MM |
Centre 2 Centre | 92.50 |
Small End Bearing | None |
Small End Bore Ø | 16 |
Small End Width | 15.00 |
Big End Bearing | 30x38x18.8 |
Big End Bore Ø | 38 |
Big End Width | 19.00 |
Big End Pin Ø | 30 |
Big End Pin Length | 55.00 |
Washer Thickness | 1.00 |
Part No. 56-936.WO (oro2u.com)
Cross reference numbers.
HOTROD 8622, WOSSNER P4002, WISECO WPR201, PSYCHIC MX-09050
