CONNECTING ROD KIT KTM SX/XC-W 125/150 16-22, ATHENA P40321048 HUSQVARNA GAS GAS

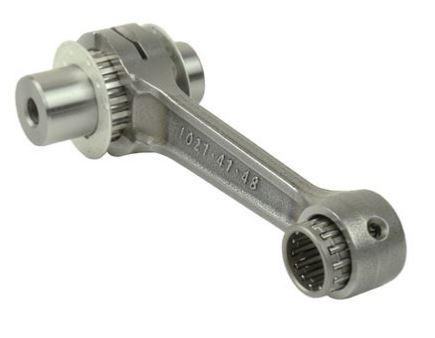

ATHENA Connecting Rod Offroad Kit - P40321048

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 28.00
• Big End Pin Diameter (mm) 22.00
• Big End Width (mm) 16.00
• Center To Center (mm) 110.00
• Net Weight (Kg) 0.37
• Piston Pin Diameter (mm) 19.00
• Small End Width (mm) 16.00
• Washer Thickness (mm) 1.00

Partner Cross Reference code

• 50430015044
• PROX 03.6226

Vehicle compatibility

• GAS GAS MC 125 cc 2021/2023
  HUSQVARNA TC Ktm engine 125 cc 2016/2023
  HUSQVARNA TE i 150 cc 2020/2023
  HUSQVARNA TE Ktm engine 150 cc 2017/2022
  HUSQVARNA TX Ktm engine 125 cc 2017/2019
  KTM EXC TPI 150 cc 2020/2023
  KTM SX 125 cc 2016/2023
  KTM SX 150 cc 2016/2022
  KTM XC-W 125 cc 2017/2019
  KTM XC-W 150 cc 2017/2022

Part No. 56-6600.ATH (oro2u.com)
