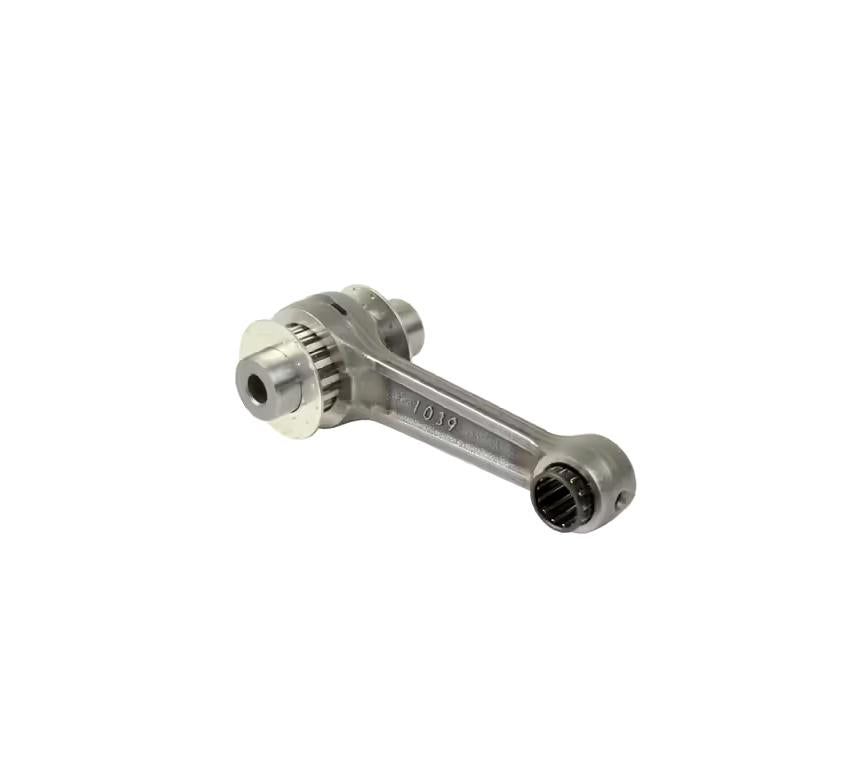

CONNECTING ROD KIT KTM SX 65 09-25, GAS GAS MC 65 21-25, ATHENA P40321039 HUSQVARNA TC 65 17-25

ATHENA Connecting Rod Offroad Kit - P40321039

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 24.00
• Big End Pin Diameter (mm) 18.00
• Big End Width (mm) 15.00
• Center To Center (mm) 88.00
• Net Weight (Kg) 0.26
• Piston Pin Diameter (mm) 15.00
• Small End Width (mm) 13.00
• Washer Thickness (mm) 1.00

Partner Cross Reference code

• 46230015000

Vehicle compatibility

• GAS GAS MC 65 cc 2021/2025
• HUSQVARNA TC 65 cc 2017/2025
• KTM SX 65 cc 2009/2025

Part No. 56-923.ATH (oro2u.com)
