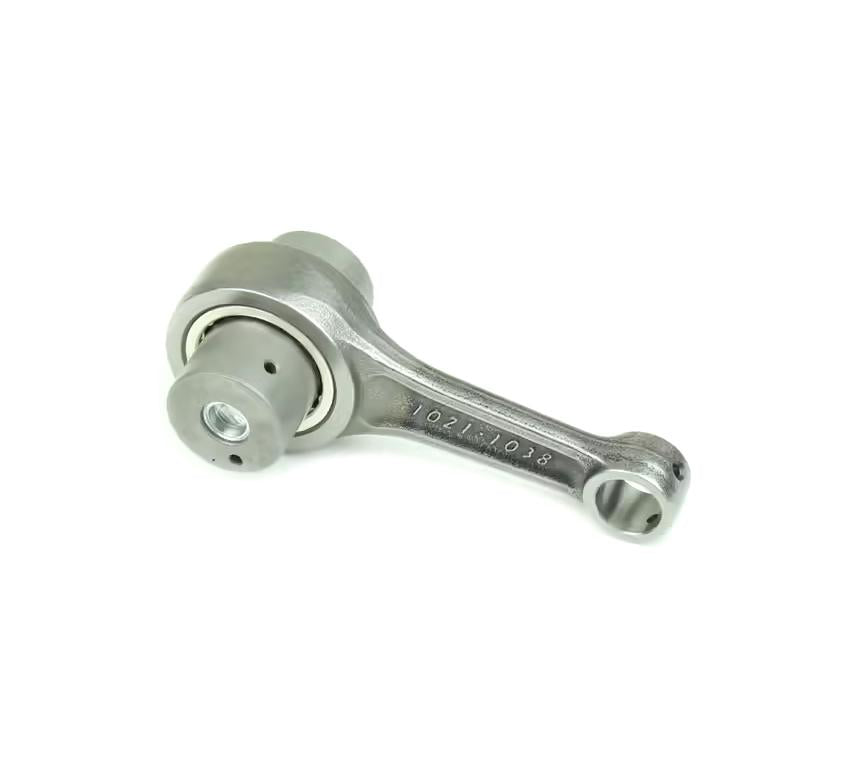

CONNECTING ROD KIT KAWASAKI KX 250 12-16, ATHENA P40321038

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 38.00
• Big End Pin Diameter (mm) 30.00
• Big End Width (mm) 19.00
• Center To Center (mm) 92.50
• Net Weight (Kg) 0.54
• Piston Pin Diameter (mm) 16.00
• Small End Width (mm) 15.00

Vehicle compatibility

• KAWASAKI KX F 250 cc 2012/2016

Part No. 56-942.ATH.B (phoenixmotos.com)
