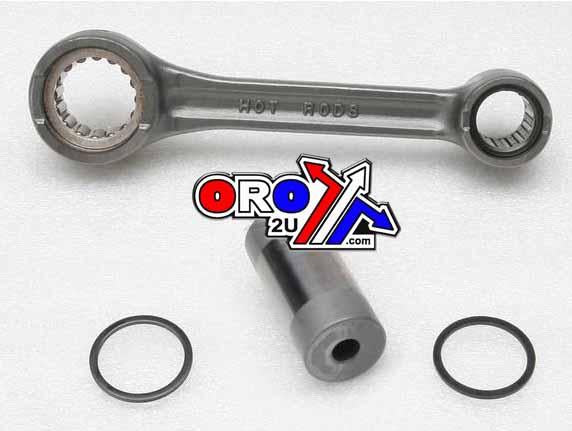

CONNECTING ROD KIT 87-92 LT250, HOTROD 8164 SUZUKI ATV

This high-quality connecting rod kit is designed for durability and reliability, making it an excellent replacement for Suzuki LT250R models. Crafted from premium materials and engineered with advanced design features, it ensures optimal performance in demanding applications.

Features:

• Premium Material: Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength.
• Advanced Design: Strategically placed side scalloping and vent slots reduce high RPM bearing race distortion.
• Double-Forged Rods: Enhances grain flow and maintains dimensional consistency for improved reliability.
• Shot-Peened and Double-Honed: Provides excellent strength under heavy loads.
• Enhanced Lubrication: Double-drilled small ends increase lubrication and cooling for the wrist pin bearing, crucial for pistons with crowns close to the bearing.
• Silver-Coated Components: Thrust washers and crank pin bearings are coated for improved lubricity.
• Complete Kit: Includes connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

Big End Bearing (mm):

• Big End Bore: 32.00 mm
• Center to Center: 128.00 mm
• Pin Diameter: 24.00 mm
• Pin Length: 54.50 mm

Small End Bearing (mm):

• Small End Bore: 23.00 mm

Cross-Reference OEM Part Numbers:

• Suzuki: 12161-00B00, 12161-05D00
• Hot Rods: 8164

Vehicle Fitments:

Suzuki:

• 1987–1992 LT250R Quad Racer

Part Number: 8164
