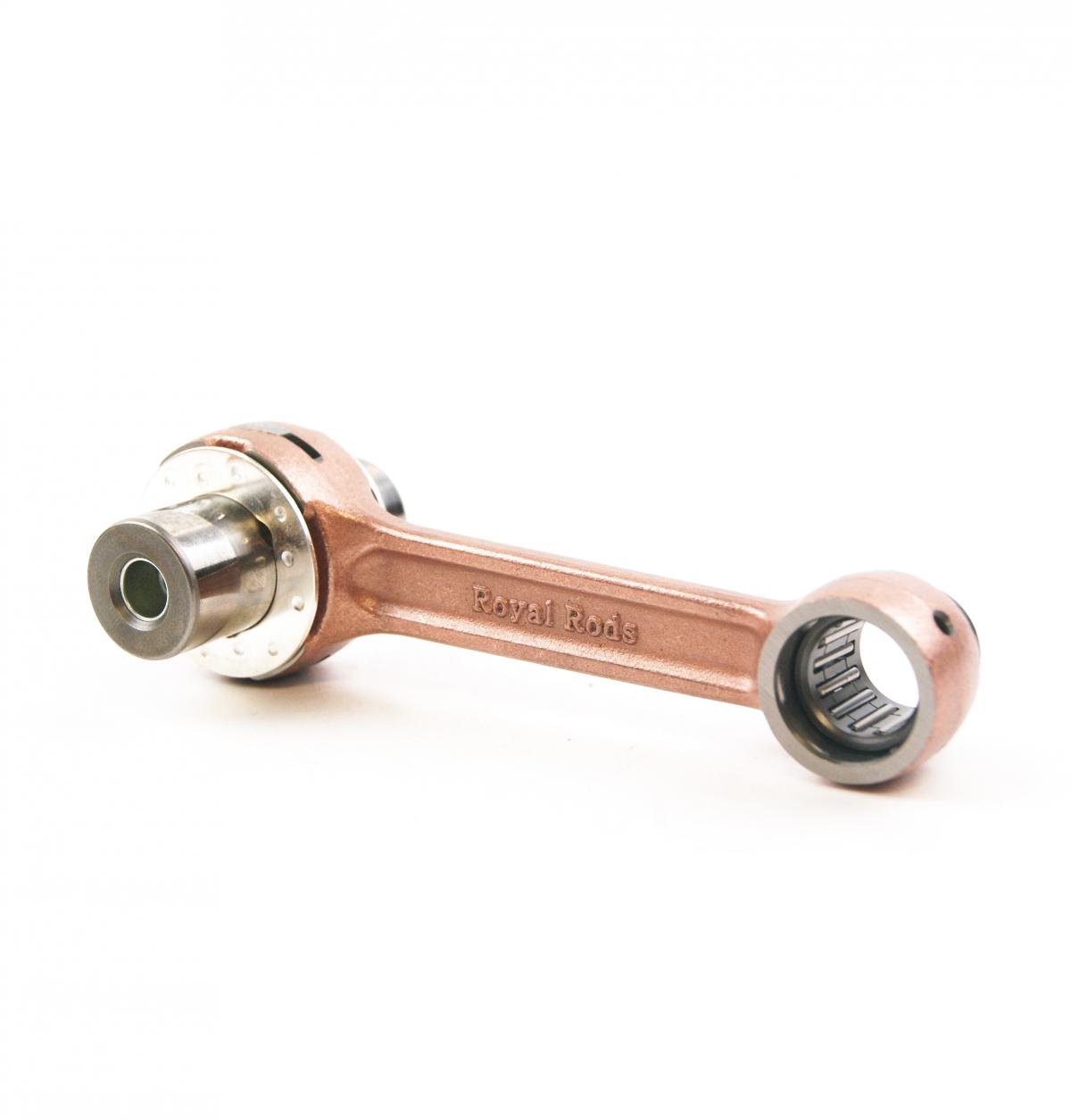

CONNECTING ROD KIT 86-96 YZ125, PSYCHIC MX-09077 YAMAHA MX, RX-40009

Yamaha
YZ125 1986-1996,

CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09077

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Part No. 56-981.DR (oro2u.com)

Cross reference numbers ONLY.
4PE-11651-02-00, PSYCHIC MX-09077, PROX 03.2217, WOSSNER P2047, HOTRODS 8104, YAMAHA: 1LX-11651-00-00, YAMAHA: 2HG-11651-00-00, YAMAHA: 4PE-11651-00-00, YAMAHA: 4PE-11651-01-00, YAMAHA: 4PE-11651-02-00,
56-981.ATH, 56-981.HR, 56-981.PROX, 56-981.WO
Small end Bearing. 16x20x19.50mm [09-B016-1],
Big end Bearing. 22x29x16.80mm [09-3101B],
