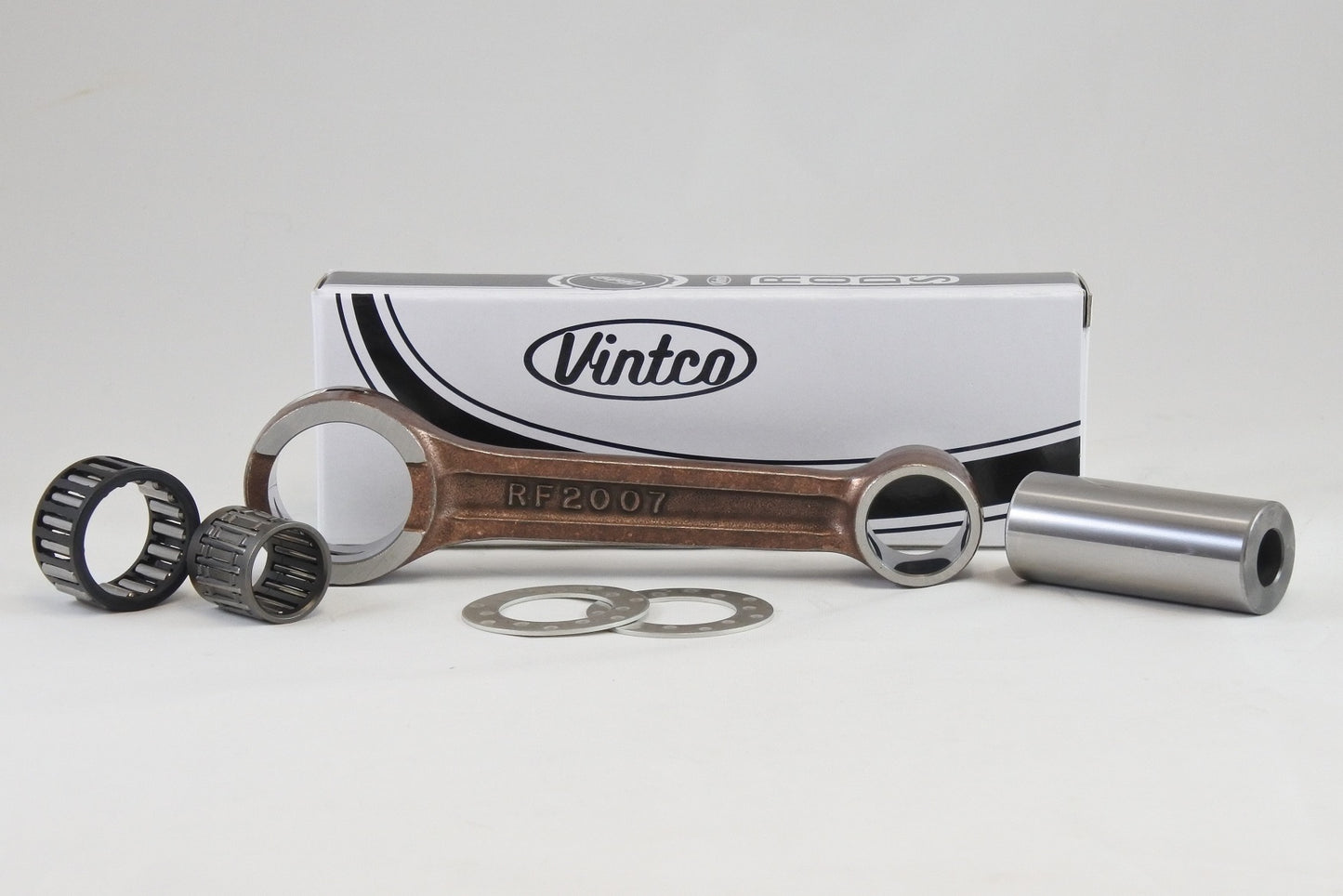

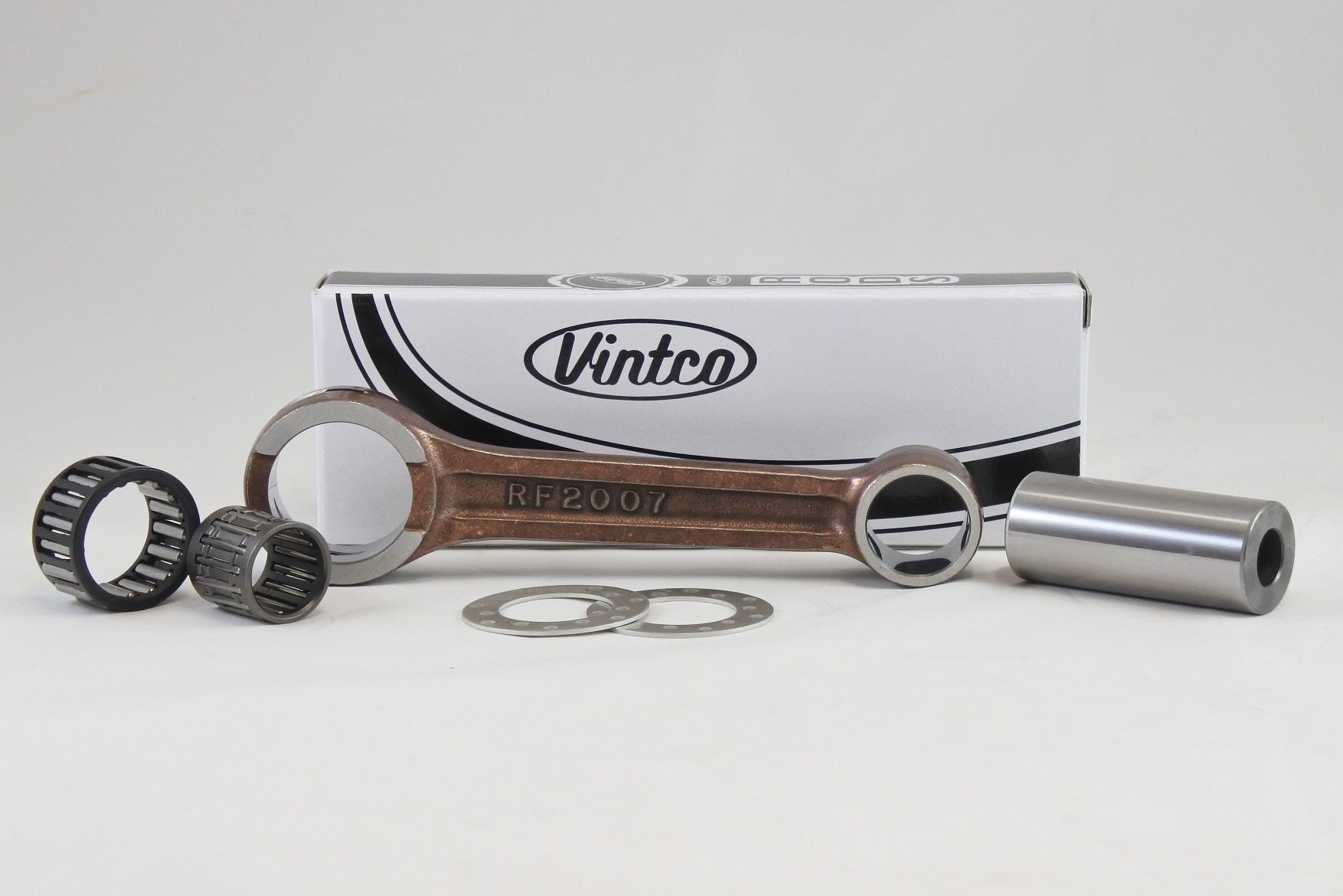

Honda CR250 1978 1979 1980 Vintco CONNECTING ROD KIT KR2027

VintCo KR2027 is a newly manufactured connecting rod kit for 1978-1980 Honda CR250 motorcycles. It is intended as a replacement solution for worn connecting rod assemblies and offers a cost-saving alternative to replacing the complete crankshaft. The kit includes the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers, and is manufactured from heavy duty forged steel using modern materials and production methods for OEM-level fit and performance.

Features

• Replacement connecting rod kit for Honda CR250 models
• Suitable for rebuilding the connecting rod assembly
• Alternative to replacing the complete crankshaft
• Manufactured using modern materials and manufacturing techniques
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers

Specifications

• VintCo Part Number: KR2027
• Item Category: Connecting Rods
• Connecting rod quantity: 1
• Connecting rod material: Heavy duty forged steel
• Crank pin size: 12 x 24 x 57 mm
• Big end bearing size: 24 x 31 x 17 mm
• Wrist pin bearing size: 18 x 22 x 22 mm
• Thrust washer size: 24 x 40 x 1 mm
• Thrust washer quantity: 2

Cross-Reference OEM Part Numbers

• 13201-KA4-700

Vehicle Fitments

• 1978 Honda CR250
• 1979 Honda CR250
• 1980 Honda CR250
