CONNECTING ROD HUSQVARNA 125, CR125 WR125 1997-2010

Huaqvarna
CR125 WR125 1997 - 2013,
CR150 2011,

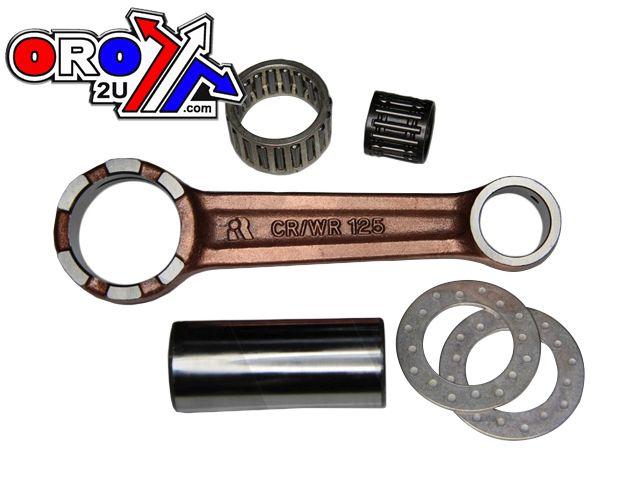

Connecting rod rebuild kit

ROD SIZE 105MM, BIG END 30 X 16MM, SMALL END 19 X 16 MM, WASHER : 24.2 X 39 X 1MM, BIG BEARING: 24 X 30 X 15.7 MM, SMALL BEARING: 15 X 19 X 17.2MM, PIN 24 X 55.3 MM

CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 105, B = 15, C = 24, D = 16, E = 16, F = 55.3

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Cross Reference Numbers Only:
RO-8209, MX-09065

Part No. 56-105.DR (oro2u.com)
