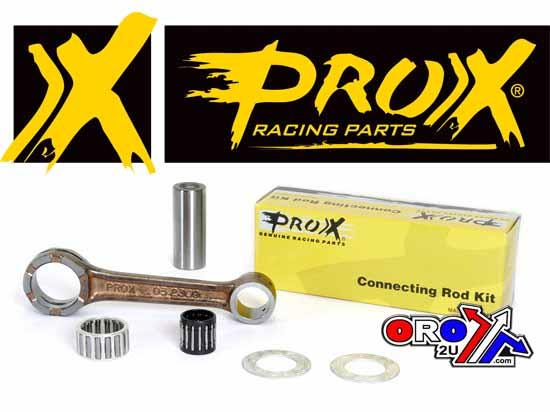

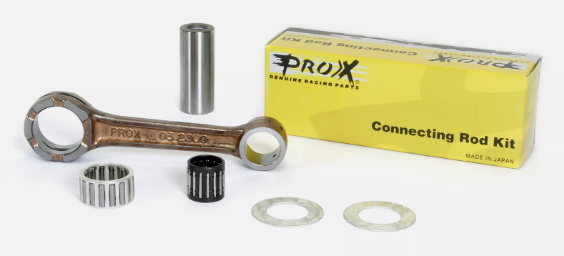

CONNECTING ROD 99-25 YZ250, PROX 03.2309 YAMAHA -5CU-, Made in Japan.
CONNECTING ROD 99-25 YZ250, PROX 03.2309 YAMAHA -5CU-, Made in Japan.
Couldn't load pickup availability
CONNECTING ROD REBUILD KIT Made in Japan.
SIZE: Rod Center-Center 125.00mm, Rod Eyes 20.00/17.00mm, Big end pin 24x59.00mm
One of our core product line, where we became famous with. Our ProX Connecting Rod Kits are made out of the toughest alloys available today and are made in Japan! O.E.M specifications and tolerances are meticulously maintained, a guarantee for easy installation and trouble free performance. ProX Rod Kit Features -Manufactured by leading Japanese OEM factories. -Designed to exact OEM specifications to be a direct and cost efficient OEM replacement. -Complete line for Dirtbike, ATV, PWC and 50cc/scooter available from stock.
Double forged on dedicated forgings This process maintains superior strength, durability and dimensional consistency through improved grain flow. Shot peening & barrelling.
| SIZE |
MM |
|
Centre 2 Centre |
125 |
|
Small End Bearing |
18x22x22 |
|
Small End Bore Ø |
22 |
|
Small End Width |
20 |
|
Big End Bearing |
24x31x16.8 |
|
Big End Bore Ø |
31 |
|
Big End Width |
17 |
|
Big End Pin Ø |
24 |
|
Big End Pin Length |
58.70 |
|
Washer Thickness |
24x40x1 |
YAMAHA
YZ 250 1999-2025,
YZ 250X 2016-2025
PROX 03-2309
