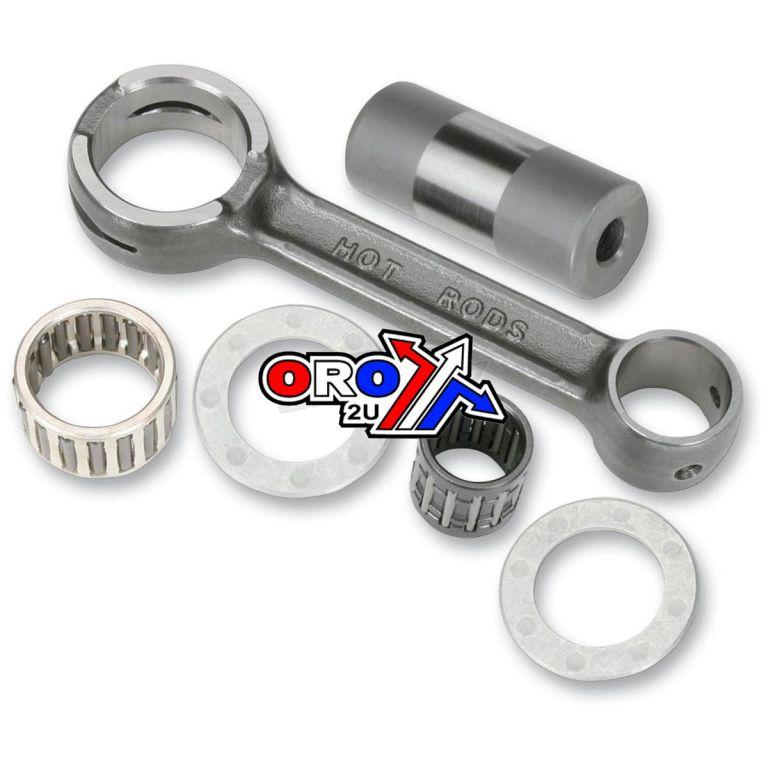

CONNECTING ROD 97-98 RM125, HOT RODS 8142 SUZUKI MX

High-quality Hot Rods connecting rod kit designed as a replacement for Suzuki RM125 models (1997–1998). Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, this kit delivers outstanding durability and performance under high-stress conditions.

Features:

• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength.
• Strategically located side scalloping and vent slots reduce high-rpm bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior durability under heavy loads.
• Double-drilled small ends improve lubrication and cooling of the wrist pin bearing, critical for close piston crown proximity.
• Silver-coated thrust washers and crank pin bearings enhance lubricity and reduce friction.
• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Cross-Reference OEM Part Numbers:

• Suzuki: 12161-43D00

Technical Specifications:

• Big End Bore (mm): 28.00
• Big End Width (mm): Not specified
• Center-to-Center (mm): 100.00
• Pin Diameter (mm): 22.00
• Pin Length (mm): 52.90
• Small End Bore (mm): 19.00
• Small End Width (mm): Not specified
• Washer Thickness (mm): 1.60

Vehicle Compatibility:

• Suzuki RM125: 1997–1998

Part Number: 56-882.HR
