CONNECTING ROD 93-15 YZ80 YZ85, PSYCHIC MX-09076 YAMAHA KIT

YAMAHA
YZ85 YZ80 1993 - 2015,

CONNECTING / CONROD ROD REBUILD KIT. PSYCHIC MX-09076

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

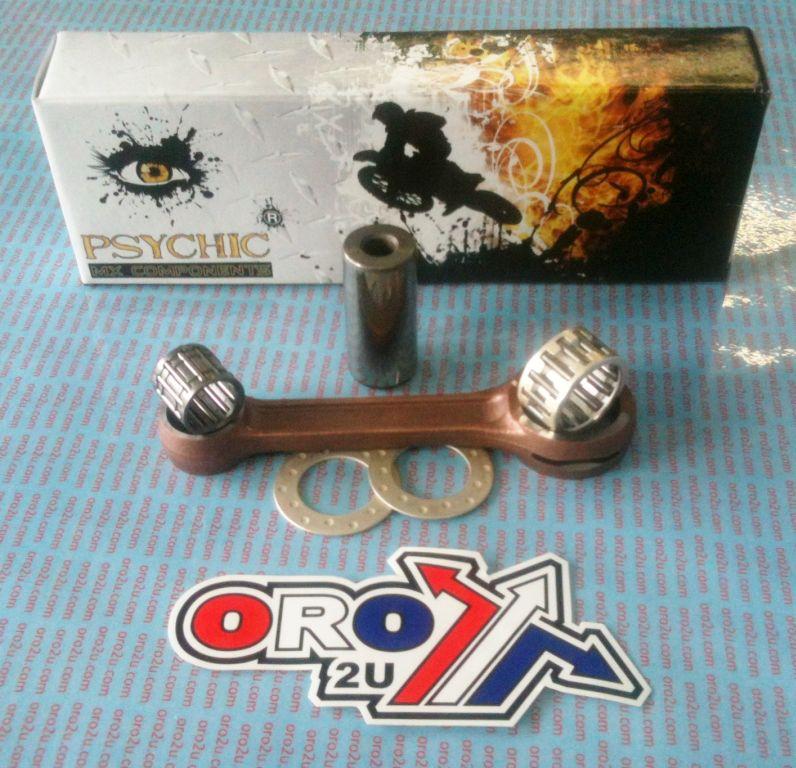

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
- All products are factory tested for 100% reliability at point of sale
- High endurance and reliability
- Direct oem replacement.
- Meets or exceeds OEM specifications
- PSYCHIC products are a high quality replacement part and carries our guarantee of your satisfaction.
- Best value for money
- Please see image before ordering to avoid mistakes.

Big End Bearing (mm): 20x26x13.8
Big End Bore (mm): 26.00
Big End Width (mm): 14.00
Center To Center (mm): 96.00
Pin Diameter (mm): 20.00
Pin Length (mm): 43.50
Small End Bearing (mm): 14x18x16.3
Small End Bore (mm): 18.00
Small End Width (mm): 14.00
Washer Thickness (mm): 1.00

Part No. 56-142.DR (oro2u.com)

Cross Reference Numbers Only:
YAMAHA: 4ES-11651-00-00, YAMAHA: 4ES-11651-01-00, YAMAHA: 4ES-11651-10-00, HOTRODS 8126, PROX 03.2015, WOSSNER P2008,
