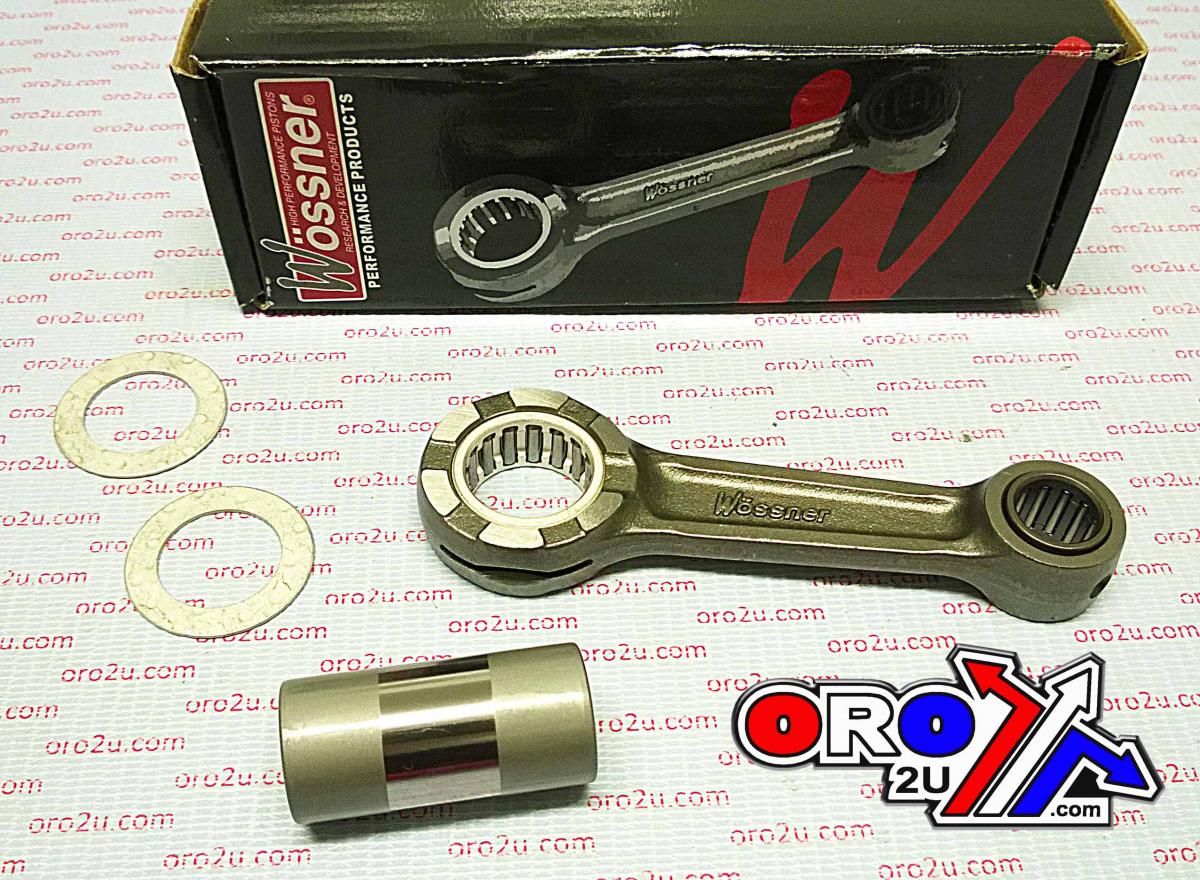

CONNECTING ROD 82-97 KX80/100, WOSSNER P2036 REBUILD KIT
CONNECTING ROD 82-97 KX80/100, WOSSNER P2036 REBUILD KIT
Couldn't load pickup availability
CONNECTING ROD 82-97 KX80/100, WOSSNER P2036 REBUILD KIT
KAWASAKI
KX80 1982 - 1997,
KX100 1995 - 1997,
KDX80 1982 - 1988,
Connecting Rod repair kit. WOSSNER P2036
Wossners forged high performance connecting rods provide the highest quality for maximum performance and reliability.
The connecting rods are made of the best material which is CNC machined to remove all surface imperfections. The rods are then machined to final size and has then been shot- peened to achieve the ultimate in strength and durability. Made in Germany.
|
MM |
|
|
Centre 2 Centre |
92 |
|
Small End Bearing |
14x18x17.20 |
|
Small End Bore Ø |
18 |
|
Small End Width |
16.00 |
|
Big End Bearing |
22x28x15.8 |
|
Big End Bore Ø |
28 |
|
Big End Width |
16.00 |
|
Big End Pin Ø |
22 |
|
Big End Pin Length |
46.40 |
|
Washer Thickness |
22x37X1 |
Part No. 56-118.WO
| KAWASAKI | KX | 100 | 1982 - 1997 |
| KAWASAKI | KX | 100 | 1985 - 1997 |
| KAWASAKI | KX | 100 | 1986 - 1997 |
| KAWASAKI | KX | 80 | 1982 - 1997 |
| KAWASAKI | KX | 80 | 1986 - 1997 |
