CONNECTING ROD 81-01 CR250, HOTROD 8103 HONDA GASGAS, ATC250R

Connecting rod kit for Honda CR250, ATC250R, TRX250R, and GasGas MC250/EC250 models, designed as a high-quality replacement. Manufactured from hot-rolled ASTM 4115 steel and case-hardened for superior strength, this kit includes all components needed for a complete rebuild and is engineered to perform reliably under heavy loads and high-rpm conditions.

Features

• High-quality connecting rod manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
• Advanced design includes side scalloping and vent slots to reduce high-rpm bearing race distortion.
• Double-forged rods improve grain flow and ensure dimensional consistency.
• Shot-peened and double-honed for exceptional strength under heavy loads.
• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for increased lubricity.

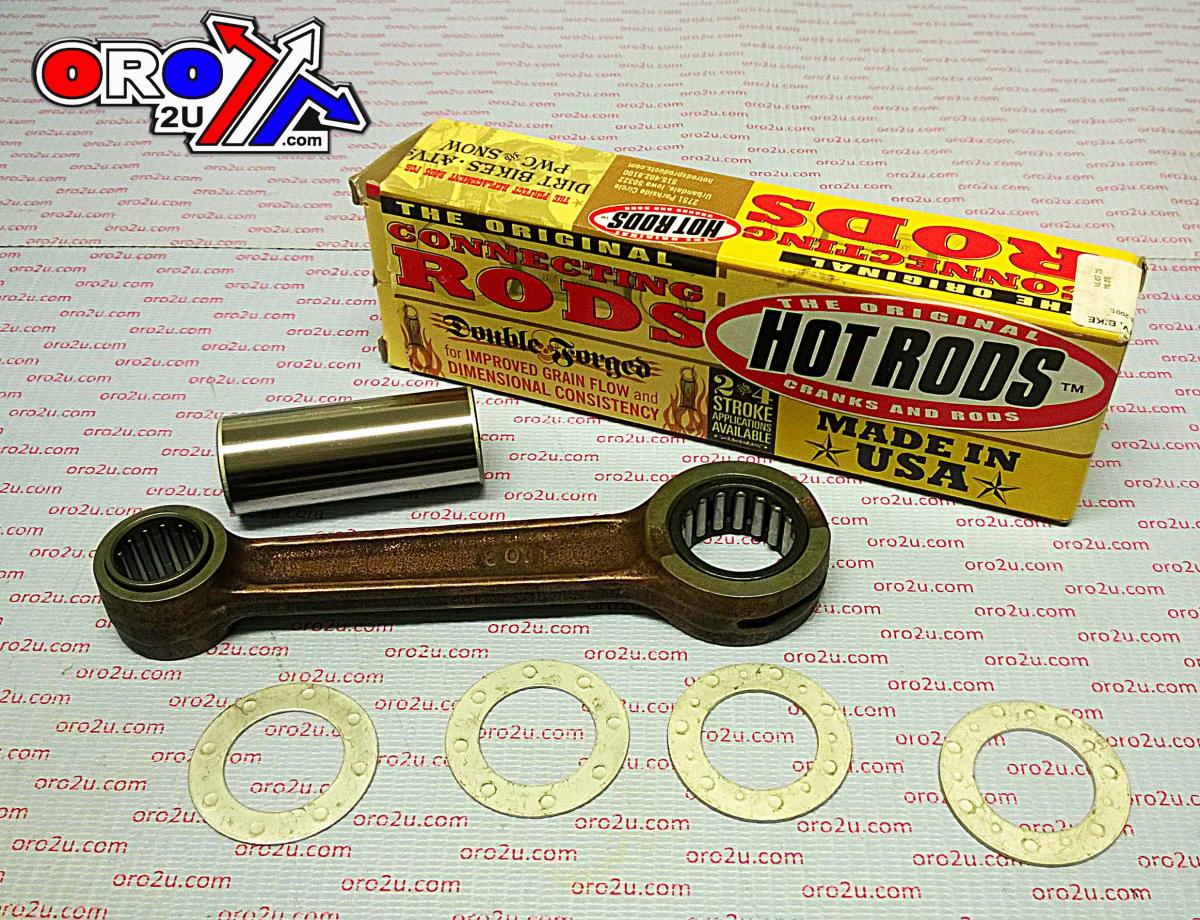

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Cross Reference OEM Part Numbers

• Vesrah VA-5001
• Wiseco WPR124
• ProX 03.1315
• Wossner P2021
• Hotrods 8103
• Honda: 06130-KZ3-880
• Honda: 13200-KA4-740
• Honda: 13200-KA4-741
• Honda: 13200-KS7-700
• Honda: 13200-KS7-830
• Honda: 13201-KA4-710
• Honda: 13300-HA2-020
• Honda: 13300-HA2-670
• Honda: 13300-HA2-671
• Honda: 13300-KZ3-690
• Honda: 13300-KZ3-700
• Honda: 13300-KZ3-860

Vehicle Fitments

Honda

• CR250R: 1981–2001
• ATC250R: 1985–1986
• TRX250R FourTrax: 1986

GasGas

• MC250/EC250: 1997–2011

Part Number: 56-933.HR
